Collimator

Collimator

Listing ID #4308048

Get Latest Price
  • Supply Type Manufacturer, Exporter, Supplier
  • Preferred Buyer Location All over the world

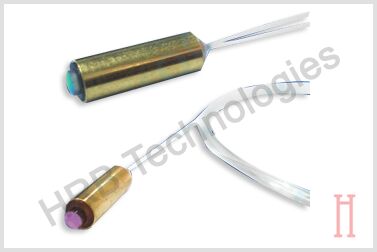

Collimator is made up by capillary pigtail and G-Lens which aligned accurately. By the self focus of G-Lens, collimator can realizable to out put a parallel beam or input the parallel beam into the fiber. It is widely used in optical module or optical researching and lab field.Applications WDM device and module Isolator Circulator Optical researching Features Low insertion loss High return loss Epoxy-free in optical path
View More Details
Send Enquiry

Company Information

HRB TECHNOLOGIES
Paschim Vihar, Delhi
View Number
  • Member Since 6 Years
  • Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier
View Company Details

Product Details no_img_icon

Collimator is made up by capillary pigtail and G-Lens which aligned accurately. By the self focus of G-Lens, collimator can realizable to out put a parallel beam or input the parallel beam into the fiber. It is widely used in optical module or optical researching and lab field.
Applications
  • WDM device and module
  • Isolator
  • Circulator
  • Optical researching
Features
  • Low insertion loss
  • High return loss
  • Epoxy-free in optical path



Specifications
Parameters Single fiber   Dual fiber
  Premium A Grade Premium A Grade
Operating Wavelength (nm) 1310/1550 ,1260,1620 or Customized   1310±20,1550±20
Insertion Loss (dB) <=0.18 <=0.20 <=0.30 <=0.35
Return Loss (dB) 60
Receive angle?degree? ±0.15
Facula diameter(mm) <0.5
Optical Power Handling (mw) ?500
Operating Temperature (° C) -10+70
Storage Temperature (° C) -40+85
Fiber Type SMF-28,MMF50/125um or MMF62.5/125
Fiber Length (Min.) 1 Meter Each End 0.25mm or 0.9mm
Package Dimension (mm) Ø 2.78*10mm or Ø3.2*10mm or customized
