Collar Thread Jacks

Listing ID #1006611

Get Latest Price

Supply Type Exporter
Preferred Buyer Location All over the world

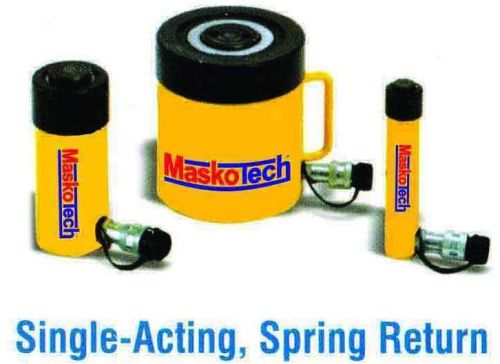

Collar Thread Jacks (MT-RSSC Series) is a precision-engineered range. We have advanced facilities to fabricate the Jacks in bulk. We can make available regular as well as custom-made Collar Thread Jacks. Single – Acting, Spring Return Collar Threads enable easy fixturing chrome plated plunger resists wear and rust, extending life. Spring return enables fast plunger retraction. Surface coating resists corrosion, extends jack life. SQB-3/8UF coupler and dust cap are included on all models.

View More Details

Send Enquiry

Product Details

Technical Specifications

Jack Capacity	Stroke	Model Number	Cylinder Effective area	Oil capacity collapsed height	Collapsed Height	Extended height	Outside dia.	Cylinder bore dia.	Plunger dia.	Weight
Tons (kn)	(mm)	Mt	(in2)	(in3)	A (in)	B (in)	D (in)	E (in)	F (in)	Kg (Approx)
5 (45)	25	RSSC-51	0.99	0.99	4.34	5.34	1.50	1.13	1.00	1.0
	76	RSSC-53	0.99	2.98	6.50	9.50	1.50	1.13	1.00	1.5
	127	RSSC-55	0.99	4.97	8.50	13.50	1.50	1.13	1.00	1.9
	177	RSSC-57	0.99	6.96	10.75	17.75	1.50	1.13	1.00	2.4
	232	RSSC-59	0.99	9.07	12.75	21.88	1.50	1.13	1.00	2.8
10 (101)	26	RSSC-101	2.24	2.24	3.53	4.53	2.25	1.69	1.50	1.8
	54	RSSC-102	2.24	4.75	4.78	6.91	2.25	1.69	1.50	2.3
	105	RSSC-104	2.24	9.23	6.75	10.88	5.25	1.69	1.50	3.3
	156	RSSC-106	2.24	13.70	9.75	15.88	2.25	1.69	1.50	4.4
	203	RSSC-108	2.24	17.89	11.75	19.75	2.25	1.69	1.50	5.4
	257	RSSC-1010	2.24	22.65	13.75	23.88	2.25	1.69	1.50	6.4
15 (142)	25	RSSC-151	3.14	3.14	4.88	5.88	2.75	2.00	1.63	3.3
	51	RSSC-152	3.14	6.28	5.88	7.88	2.75	2.00	1.63	4.1
	101	RSSC-154	3.14	12.57	7.88	11.88	2.75	2.00	1.63	5.0
	152	RSSC-156	3.14	18.85	10.69	16.69	2.75	2.00	1.63	6.8
	203	RSSC-158	3.14	25.13	12.69	20.69	2.75	2.00	1.63	8.2
25 (232)	26	RSSC-251	5.16	5.16	5.50	6.50	3.38	2.56	2.25	5.9
	50	RSSC-252	5.16	10.31	6.50	8.50	3.38	2.56	2.25	6.4
	102	RSSC-254	5.16	20.63	8.50	12.50	3.38	2.56	2.25	8.2
	158	RSSC-256	5.16	32.23	10.75	17.0	3.38	2.56	2.25	10.0
50 (232)	101	RSSC-504	11.04	44.18	8.94	12.94	5	3.75	3.13	19.1
	156	RSSC-506	11.04	69.03	11.13	17.38	5	3.75	3.13	23.1
	337	RSSC-5013	11.04	146.34	18.13	31.38	5	3.75	3.13	37.6
75(718)	156	RSSC-756	15.90	97.41	11.25	17.38	5.75	4.50	3.75	29.5
100 (933)	102	RSSC-1004	20.63	82.60	12.05	16.05	7	5.13	4.13	30.0
100 (933)	168	RSSC-1006	20.63	136.67	14.06	20.69	7	5.13	4.13	59.0

Used for long strokes Vertical & Horizontal Application.
Saddle, Collar threads , Bottom mounting holes
