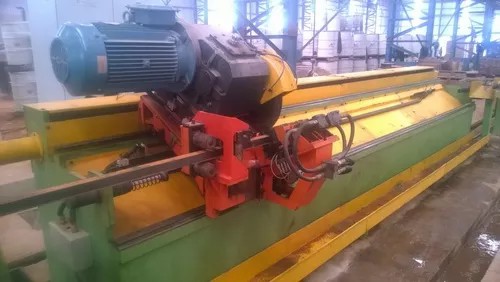

Cold Saw Cutter, Tube Mill Machine (burr Free)

Listing ID #3755996

Get Latest Price

MOQ 1 Piece(s)
TypeAUTOMATIC
Brand NameSHAH SATNAM JI ENGINEERING WORKS
Warranty1 YEAR
After-Sales Service Providedchargeable
Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Product Details

Manufacturer: ssjew
model number: slant bed
specifications:
maximum speed: 325 fpm (100 mmin.)
maximum thickness: (4.06 mm)
minimum thickness: (1 mm)
maximum diameter: 3" (76.2 mm)
maximum square dimensions: 2.5" (63.5 mm)
maximum rectangle dimensions: 1-12" x 3" (38.1 mm x 76.2 mm)
clamp system: hydraulic
hydraulic power: 4 kw
blade type: hss-tct
diameter of saw: 400 mm
maximum saw linear speed: 350 mmin.
Carriage axis systems: timing belt-servo motor
saw feed axis: ball screw-servo motor
controls:
servo drives: delta
saw feeding servo motors: delta
carriage feeding servo motors: delta
permanent magnet servo 70 nm 3000 rpm fan cooled
saw motors: ac motor 9 kw 1500 rpm
operator interface: 7-12" touch screen
clamp system: hydraulic actuated pass through clamp
location: india

Additional Information

Payment Terms T/T
Port of Dispatch MUMBAI
Packaging Details AS COSTUMER REQUIRED
Delivery Time 3 MONTHS

Company Details

Shah satnam ji engineering works was established in the year 2002. We are leading manufacturer and supplier of roll forming shutter patti machine model (pds), roll forming shutter patti machine model (cpds), roll forming shutter patti machine, roll forming shutter patti machine, hydraulic grevity die casting machine, metal sheet bending machine, heavy duty decoiler machine, wire coiler machine.
these machines and other products are manufactured with utmost precision using the best grade components. Designed as per the defined quality standards, our products are high in demands due to their optimum performance, robust construction, high strength, reliable operations and longer service life. We make use of latest technologies to fabricate these machines. This enables us in ensuring high quality in our product range.
