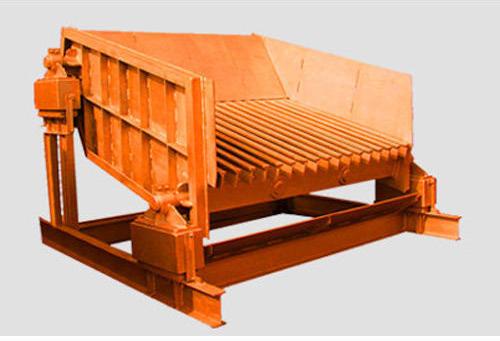

Coke 5x16 Vibrating Screen

Listing ID #1529297

We are engaged in providing 5x16 Vibrating Screen to the clients. Our Vibrating Screen is made from premium components, and has long service life. It is majorly known for its consistent performance.
Details

• Make : Virat
• Size of Screen : 5' x 16' long (1500mm x 4800mm)
• Type : Inclined Circular motion balanced weights, mechanically vibrated screen
• Capacity : 110 TPH
• Material : Coke
• Materials Design : 550 Kg / M3 (0.55 Tons / M3)
• Feed Analysis : - 65mm
• R. P. M. : 1000
• No. of Decks

  • Top Deck - 65mm dia
  • Second Deck - 45mm dia
  • Third Deck - 25mm dia
  • Fourth Deck - 10mm dia
• Deck Material : M. S. Fabricated
• Screen Cloth Material

  • I - 0.5% C.S. dia 12.5mm Rods are provided
  • II - 8.0mm Thick M.S. Plates with punched holes
  • III - 6.0mm Thick M.S. Plates with punched holes
  • IV - 6.0mm Thick M.S. Plates with punched holes
• Basket : M.S. Fabricated from Heavy Steel Plates
• Ecc Shaft : C - 45
• Bearing : Specified Double Rollers Self allinged
• Drive : Through 'V' Belt & 'V' Pulley
• 'V' Belts : 'C' section of standard make like Dunlop, Fenner on equivalent will be provided.
• Motor : 20 HP / 1440 RPM / TEFC / Sq. Cage Induction type or standard make like Simens / Crompton / ABB or equivalent make will be provided.
• Base Frame : M.S. Fabricated from Heavy Channels, Angles & Flates

We will give you first deck screens cloth made up of 0.5% C.S. Rods j 12mm thick with spot welding. All other screen cloth will be made for M.S. plates 8 to 6mm thick punched holes as above. Screen Cloth Nuts are welded on Frame & Bolted type fitted.
