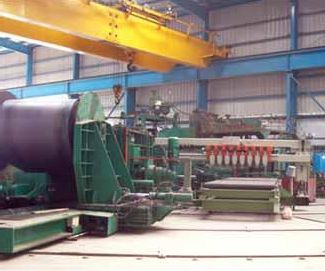

Coil UT inspection system consists of 25-96 channels depending on percentage of the area to be scanned and width of the coil. This system is suitable for both spiral plant mill as well as ERW plant mill application. The system consists of gantry type mechanism which shifts the probe cluster form inline position to off line calibration position. The system is fully automatic and controlled with its own PLC which is in turn integrated to mill's control system.
Some Indicative Specifications :

• Coil Width - 600-2000mm
• Plate Width - 600-5000mm
• Testing Speed - 2-10m/min
• Coverage - 25-100%
