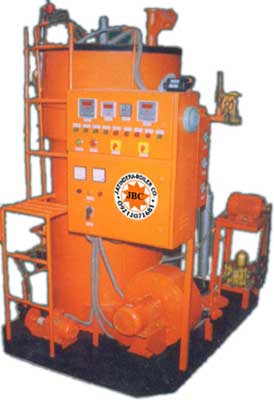

Coil Type Steam Boilers

Listing ID #135005

Our Coil Type Steam Boilers are also known as JBC Reverse Flame Steam Boiler (Generator) that is compact in design, noiseless, and an instant steam generator. The Reverse Flame Technology of these Coil Type Steam Boilers has made their demand consistent in market. The furnace of these Coil Type Steam Boilers is made of an airtight helical coil of membrane, which helps in enhancing the work efficiency of them. Double jacketed MS Shell, Aluminum Radiator, Dust free pre-wired fully automatic control panel, Economizer for preheating of water, and Coil Pipe TISCO & TI Coil of Diameter is 31.8mm/OD are some superior technicalities that raised the demand of these Coil Type Steam Boilers in global markets.
Technical Specifications :
DESCRIPTION-UNITJBC SB-1 JBC SB-2 JBC SB-4 JBC SB-6RATED STEAM OUTPUT (F & A 1 00 oC)-Kg / Hr.100200400600STEAM PRESSURE-Kg /cm2g10.54 -15.0FUEL MOIL CONSUMPTION HSD (DIESEL)-Kg / Hr6122436BURNER CONTROLAutomatic Feather TouchFEED WATER PUMP MOTOR-HP1.01.01.01.0FUEL PUMP MOTOR-HP0.50.5 0.50.5BLOWER MOTOR-HP1.01.02.02.0ELECTRICAL SUPPLY--AC-3 PHASE, 4WIREEFFICIENCY (NCV)-%-87±2DIMENSIONSLENGTHMTR1.51.72.02.2WIDTHMTR1.31.31.51.5HEIGHTMTR1.01.11.31.3DRY WEIGHT (APPROX)-KG65080010001100
Note :
We reserve the right to change any specification without prior notice.
