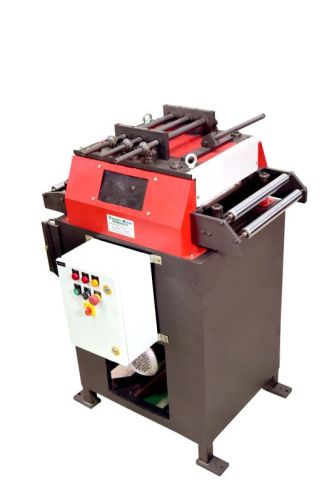

Contact SupplierSamay-Asia Special designed coil straightener for coil materials that need high precision punching treatment. As we all know, coil material can’t produce good products without flattening and stress relieving treatment: therefore, the performance of the straightener is critical in the production process.
SPECIAL FEATURES:
Multi Straightening Rollers.
All rollers are made of D2 steel, have all been quenched, hard chrome plated and grinded with HRC 60°.
Achieves perfect leveling performance.
Easy to set material thickness.
SPECIFICATION: COIL STRAIGHTENER |
|||
Model No: |
Coil Width (MM) |
Strip Thickness (MM) Coil O.D. |
Motor Power (HP) |
S-A/ST-I S-A/ST -II S-A/ST -III S-A/ST –IV S-A/ST -V |
150 200 300 400 500 |
0.35-1.50 0.35-1.50 0.35-1.50 0.35-1.50 0.35-1.50 |
2 HP |
S-A/ST -VI S-A/ST -VII S-A/ST –VIII S-A/ST –IX S-A/ST –X |
150 200 300 400 500 |
1.0-3.50 1.0-3.50 1.0-3.50 1.0-3.50 1.0-3.50 |
3 HP |
S-A/ST –XI S-A/ST –XII S-A/ST –XIII |
200 300 400 |
1.6-5.0 1.6-5.0 1.6-5.0 |
5 HP |
