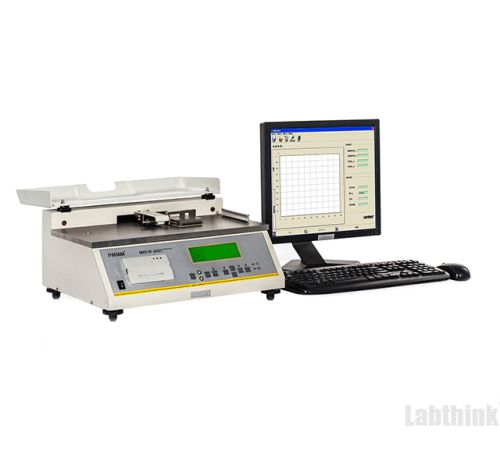

Coefficient Friction Tester

Listing ID #4159491

Get Latest Price

Humidity: 20%RH ~ 70%RHPower Supply
Accuracy1% FS
Test Speed100 mm/min
Environment ConditionTemperature: 10°C ~ 40°C
Supply Type Manufacturer, Supplier
Preferred Buyer Location All over the world

View More Details

Product Details

Environment Condition Temperature: 10°C ~ 40°C
470 mm (L) x 310 mm (W) x 200 mm (H) Net Weight
Specifications MXD-01
Accuracy 1% FS
Stroke 10 mm + 60 mm
Capacity Range 0 ~ 5 N
Mass of Sled 200 g, 500 g (1000 g optional)
Humidity: 20%RH ~ 70%RH Power Supply
Test Speed 100 mm/min
220VAC 50Hz / 120VAC 60Hz Instrument Dimension

MXD-01 Coefficient of Friction Tester is strictly based on GB 10006 standard, and is professionally applicable to the determination of static and kinetic coefficients of friction of plastic films, sheets, rubber, paper and paper board, PP woven bags, fabrics, metal-plastic composite belts for communication cables, convey belts, wood, coatings, brake pads, windshield wipers, shoe materials and tires. By testing the frictional properties of materials, the technical indexes could be controlled to meet requirements for production. Besides, the instrument can be used to measure smoothness of cosmetics, eye drops and other daily products.

Features

Static and kinetic coefficients of friction can be tested simultaneously
The functions of automatic delay timing and automatic COF zeroing ensure enough touching time between tested specimens
The sliding plane and the sled are treated by degaussing and remanence detection which effectively reduce the system errors
The instrument is controlled by micro-computer with LCD, PVC operation panel and menu interface, which is convenient for customers to test or view the test data
Top quality parts and components made by world famous brands are used to ensure reliable overall product performance
Professional operating software supports the automatic judgment of smoothness status, discrete analysis of test results(confidence degree) and statistical analysis of group specimens
Micro-printer can automatically print the test reports of single tested specimen or groups of tested specimens
Equipped with RS232 port for convenient PC connection and data transfer
Supports LystemTM Lab Data Sharing System for uniform and systematic data management

asic Applications	· Films
	· Paper and Paperboard
	· Textiles, Non-woven Fabrics and Woven Bags
	· Rubber
	· Aluminum Foils, Aluminum Foil Composite Films, and Metal Products
	· Printing Matters

Extended Applications	· Wood and Flooring
	· Photographic Films
	· Pipes
	· Grains The instrument can test static and kinetic coefficients of friction of grains against the metal and other materials.
	· Hair The instrument can test static and kinetic coefficients of friction of the hairs.
	· Ball Shaped Materials The instrument can test static and kinetic coefficients of friction of the ball shaped materials against even leveled materials.
	· Medical Tubes The coefficients of frictions of catheters and nose feeding tubes against human skin have the direct affection on patient comfortable feeling. This instrument can test static and kinetic coefficients of friction of medical tubes against skin
	· Lacquered Wires This instrument can test static and kinetic coefficients of friction of the lacquered wires against even leveled materials.
