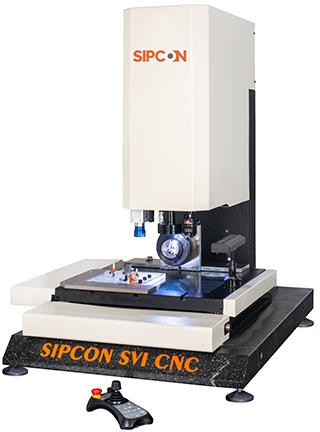

CNC Video Measurement System

Listing ID #6219768

Get Latest Price

Measuring range100x100x100mm to 500x400x300mm
FeaturesThread less worktable , Zero Backlash
Magnification range9X-500X
Supply Type Exporter, Supplier, Retailer, Distributor, Trader
Preferred Buyer Location All over the world

View More Details

Product Details

MODEL NO.	SVI-5300-CNC-V	SVI-5300-CNC-VT	SVI-5300-CNC-VTL
Software	Ik 5000 / MSU3DPRO
Measuring Range-Standard	250 X 150 X 200 mm
Measuring Range-Optional	X-axis upto 500mm, Y-axis upto 400mm, Z-axis upto 300mm
Resolution	0.005/ 0.001/ 0.0005/ 0.0001mm
Linear Accuracy	(3+L/200) micron
Repeatability	±(0.002mm)
Vision	1/3" High Resolution CCD Camera
Magnification	Optical Magnification 0.7X - 4.5X & Magnification on Monitor 35X - 225X
Video Edge Detection	Standard
Optional Hardware	PC +19' TFT Monitor
Illumination Surface	Fibre Optic/LED
Illumination Contour	Halogen Lamp/LED
Operation	Manual with Quick Release Knob & CNC
Base Platform & Column	Granite
Platform Load Capacity	30Kg
Power Supply	220-240 V ± 5%, 50/60 Hz
Motion Control through Joystick	Standard
Programmable Lite Control	Optional
Non-Linear Error Correction	Optional
Autofocus	Optional
Touch Probe	X	Renishaw MCP / MH20i	Renishaw MCP / MH20i
Laser Probe	X	X	Conoprobe

Company Details

Sipcon Instrument Industries, established in 1971, is India's largest manufacturer of Vision Measuring Systems, Profile Projectors, Coordinate Measuring Machines and Automatic Optical Inspection Systems.
Our aim is to transform innovative concepts into market ready products. We focus intensely on our client's requirements, continuously develop and improve existing technologies and orient ourselves towards new trends. This enables us to guarantee the highest level of manufacturing processes and convincing product solutions.
Our technical capability, R&D expertise and after sales support is unmatched in our industry and uniquely position us to compete anywhere in the world.
