One of the reputed name in manufacturer of cnc turning center. With the years of experience we cater variety of cnc turning center.

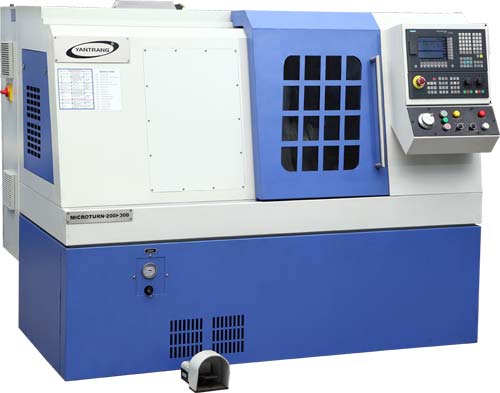

model micro turn 200300
specification
capacity 200300
swing over bed 500
maximum turning length 300
maximum dia. Between center 250
distance between center 350
standard turning dia. 200
chuck size 200
max. Turing dia. 300
x-axis travel 175
z-axis travel 350
rapid traverse 20
slide
z axis ball screw 32 x 10
motor torque (z axis) 7nm
x asix ball screw 32 x 10
motor torque (x axis) 7nm
main spindle
spindle motor 5. 5 3. 5
spindle bore 38
spindle nose a2-5
maximum bar capacity 25
spindle speed range 50-4000
full power speed range 750-3500
turret btp-63
number of station 8
max. Boring bar dia. 32
tool size (cross section) 20 x 20
tailstock
quill dia. 85
quill stroke 120
thrust (adjustable) kgf 500
others
weight (approx) 3000
positioning accuracy (micron) 0. 010
repeatability (micron) 0. 005
