Contact SupplierThe company has cemented its presence among the top-notch Machinery Indenting Agents & Exporters in Maharashtra, India. We are engaged in bringing to you an efficient and durable array of CNC Turning Center Machines. We have installed an in-house production facility to meet the specific requirements of the buyers. Buyers can approach us for procuring them in tailored specifications, at feasible prices.
Standard Features :
Optional Features :

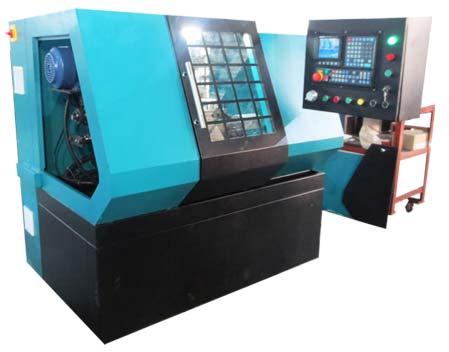

Turn Master Series - CNC Turn Master GF A – 42
The Future of Machine Tools Unfolding GF CNC Design & Manufacture complete line of CNC Turning Centers to meet the needs of modern machine shops, now and long into the future. The machines offer a wide range of capacities that reduce power Consumptions for Manufacturing Components Cost Effectively with Greater Degree of Automation. It enhances Capability in boosting production and reduced cost. Speciality is that this A-42 can be converted to A-32 and A-25 by just changing the sleeve and collet. Bar feed available.
Standard Features
Siemens 808 D Controller
Optional Features
Capacity | |
-- | Round - 25 mm |
Std. Turning Diameter | Hex - 22 MM |
-- | Square - 18 MM |
Max. Turning Diameter | 25mm |
Max. Bar Length | 3000 mm |
Main Spindle | |
Collet Spindle | A - 25 |
Max.bar Capacity | ø25mm |
Spindle RPM | 200-400 RPM |
Motor Power | 3 HP |
Slides | |
Cross(X axis) Travel | 150 mm |
Longitudinal (Z axis) Travel | 200 mm |
Rapid Feed (X & Z axis) | 15 M/Min. |
Ball Screw | |
Z axis | 25x 5P mm |
Motor Torque (Z axis) | 2.4 Nm |
X axis | 25x 5P mm |
Motor Torque (X axis) | 2.4 Nm |
Turret | |
No. of Tool | 7 |
No.of Station | 4 |
Tool Size | 20 x 20 mm |
Accuracy | |
Positioning Accuracy | 0.01 mm |
Repeatability | ±0.005 mm |
Coolant | |
Motor Power | 0.18 KW |
Capacity | 63 LPM |
Control System Hust H4 CP -T/GF 4 PT Other Data |
|
Collet Clamp Declamp | Electronically |
Weight (Apporx) | 650 Kg |
Machine Dimensions | 1600 x 1250 x 1520 |
Power Requirement |
|
Capacity | |
Admit Between Centres | 300 mm |
Width of bed | 274 mm |
Swing over Bed | 325 mm |
Swing over Cross Slide | 150 mm |
Height of Centre | 165 mm |
Chuck dia. | 135 (Optional) |
Maximum Turning Dia. | 42 mm (In collet) |
Hex | 36 mm |
Square | 28 mm |
Max. Turning Dia. | 42 mm |
Max. Turning Length | 250 mmBetween Center |
Headstock | |
Spindle Type | A2-5 |
Bore through Spindle | 49 mm |
Bar Capacity | 42 mm |
Spindle rpm (max) | 3500 mm |
