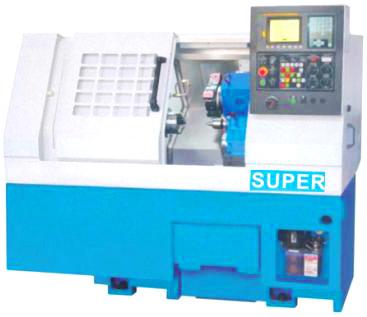

Cnc Trainer Lathe

Listing ID #4096245

Get Latest Price

Quill Diameter 35mm
Main Supply
Longitudinal Travel (Z-axis) 210 mm
Positioning Accuracy 0.01
Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Product Details

Tailstock taper MT-2
MODEL SUPER- TL
CNC SIEMENS 802D SL / FANUC Oi MATE
TAILSTOCK:
Programmable Feed Rate 0-5000 mm/min
Spindle height from floor 1100 mm
Repeatability -0.005 mm
Spindle Motor Capacity 5 (3.73 KW)
Main Supply
Chuck size 100 mm
SPINDLE
CAPACITY:
Guide ways LM Guides
Longitudinal Travel (Z-axis) 210 mm
Swing over way Covers 240 mm
Positioning Accuracy 0.01
Maximum turning Length 180 mm
Turret Programmable (Unidirectional) 8 Station
Spindle Nose Taper A 2/3
Bed Casting
Axis Motor power 0.75kw(3 NM)
Swing over Bed 275 mm
Programmable Spindle speed 150-4000 R.P.M
Boring bar 16mm
Spindle Motor AC servo
Distance between centers 320 mm
TURRET:
Cross Travel (X-axis) 95mm(190mm in dia)
Maximum turning Diameter 80mm
Lubrication Central lubrication
Spindle Bore 20 mm / MT3
Quill Diameter 35mm
Rapid Traverse Rate(X/Y axis in m/min) 5 m/min
Coolant Tank 60 Lts.
Tailstock Travel 170mm
Axis Motor (Z and X axis Motors) AC SERVO
Design: Slant Bed 45 degree
Tailstock Quill Stroke 30mm
Resolution 0.001 mm
Swing over Cross slide 80 mm
AXIS
AXIS TRAVERSE RATE:
Ball Screw dia & pitch 16 & 5

FEATURES :
- CNC Slant Bed Bench Turning Centre
- 8 Station Indexing Tool Post
- SIEMENS 802D SOLUTION LINE control / FANUC Oi Mate Programming and Industrial type Control Panel with
10" colour monitor with closed loop servo motor control with further option of linking to CAD/CAM and FMS
(Flexible Manufacturing System).
