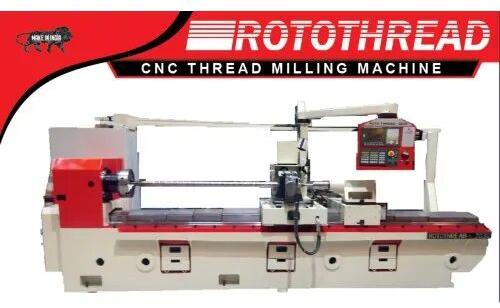

Cnc Thread Milling Machine

Cnc Thread Milling Machine

Listing ID #6893812

Get Latest Price
  • THREAD MILLING DIA200 mm with Bush type
  • MAX. THREAD MILLING LENGTH3000 mm I
  • MAX MILLING HEAD SPINDLE SPEED3000 rpm
  • ROTARY TABLE CHUCK (MANUAL) DIA320 mm
  • Supply Type Manufacturer, Exporter, Supplier, Distributor, Trader
  • Preferred Buyer Location All over the world
View More Details
Send Enquiry

Company Information

BALAJI AUTOTECH PVT LTD
Koorgally, Mysore, Karnataka
View Number
  • Member Since 8 Years
  • Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Product Details no_img_icon

  • THREAD MILLING DIA 200 mm with Bush type
  • MAX. THREAD MILLING LENGTH 3000 mm I
  • MAX MILLING HEAD SPINDLE SPEED 3000 rpm
  • ROTARY TABLE CHUCK (MANUAL) DIA 320 mm
  • OVERALL MACHINE SIZE IN mm (LXWXH) 5420)(2360)(2250
  • MAX. JOB WEIGHT (HORIZONTAL) 600 kg
  • RAPID TRAVERSES 6000 mm/min
  • COOLANT PUMP FLOW 63 Ipm with 100 Lts Tank Capacity
  • SPINDLE TAPER TYPE BT-50
  • BED GUIDEWAY Linear Motion Guidway with Casting Bed
  • INTERFACE PANEL Machine Mounted with air conditioner
  • TOOL CLAMPING Manual Draw bar type (Optional Hydraulic)
  • GUIDEWAY PROTECTION COVER X and Z Axes guide (No protection for Tailstock Guide)
  • Model Number ROT02030
  • APPROXIMATE WEIGHT IN kqs 9500
  • Indexing Accuracy +-15
  • Positioning Accuracy 0.01 mm
  • AXIS REPEATABILITY 0.05 mm
  • HYDRAULIC POWER PACK RATING 0.37 kW & 5.7 Its
  • FEED RATES (INFINATELY VARIABLE) 1 to 5000 mm/min
  • ROTARY TABLE BORE DIA 100 mm
  • ROTARY TABLE ROTATION SPEED 13.8 (with 2000 Max rpm of Servo Motor)
  • T-Slot Size 14X8 mm
