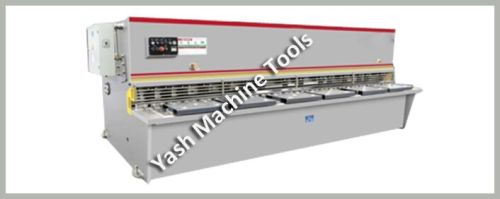

CNC Swing Beam Shearing Machine

Listing ID #3819916

Get Latest Price

Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Product Details

Swing beam shear with CNC feature is perfect equipment for smooth machining. All the machine components are high quality that supports for efficient functioning and remain steady for long production requirements. When it comes to quality of operation and maintenance, this apparatus requires comparatively minimal preservation yet stays best in providing precise shearing applications. It can be applied for small to moderate and big length of jobs. In addition, the numerical control is an added advantage for the operator easy monitoring and feasible operations. As far as cutting is concerned, the cutting speed and angle becomes suitable to the work material type. Find more details about the features by visiting our website.

Hydraulic transmission, swing blade holder
Strong and durable integral welded frame
Stable and rapid return stroke of oil cylinder by accumulator
Adjustable (full/shorter)stroke
Hand-wheel adjustment of gap between the upper and lower blades
Numerical control system and position coder form a closed ring control system
The control system ensures great speed, high accuracy and good stability

Model	ShearSize(TxW)(mm)	Shear Angle	Strokes(min-1)	Back Gauge Range (mm)	Main Motor(kw)	Weight (kg)	Overall Dimensions (L×W×H)(mm)
CNC HSB-425	4×2500	1°30′	≥18	20-600	5.5	3,500	3120×1460×1500
CNC HSB-432	4×3200	1°30′	≥14	20-600	5.5	5,000	3820×1720×1620
CNC HSB-440	4×4000	1°30′	≥10	20-600	5.5	7,500	4620×1850×1700
CNC HSB-450	4×5000	1°30′	≥10	20-600	7.5	16,000	5786×2200×2160
CNC HSB-625	6×2500	1°30′	≥18	20-600	7.5	5,500	3140×1540×1570
CNC HSB-632	6×3200	1°30′	≥14	20-600	7.5	6,200	3840×1660×1620
CNC HSB-640	6×4000	1°30′	≥10	20-600	7.5	8,500	4645×1850×1700
CNC HSB-650	6×5000	1°30′	≥10	20-750	11	16,000	5786×2200×2000
CNC HSB-660	6×6000	1°30′	≥7	20-800	11	17,500	6730×2500×2090
CNC HSB-825	8×2500	1°30′	≥14	20-600	11	5,200	3140×1540×1570
CNC HSB-832	8×3200	1°30′	≥10	20-600	11	7,200	3840×1660×1620
CNC HSB-840	8×4000	1°30′	≥8	20-600	11	9,200	4664×1880×1720
CNC HSB-850	8×5000	1°30′	≥7	20-600	15	21,000	5786×2252×2310
CNC HSB-860	8×6000	1°30′	≥5	20-600	15	28,000	6900×2570×2280
CNC HSB-1025	10×2500	1°40′	≥11	20-800	15	8,500	3205×2000×1890
CNC HSB-1032	10×3200	1°40′	≥10	20-800	15	9,500	3905×2000×1890
CNC HSB-1040	10×4000	1°40′	≥8	20-800	18.5	13,500	4705×2150×2000
CNC HSB-1225	12×2500	1°40′	≥11	20-800	18.5	10,000	2695×2042×1900
CNC HSB-1232	12×3200	1°40′	≥10	20-800	18.5	11,500	3945×2042×1900
CNC HSB-1240	12×4000	1°40′	≥8	20-800	18.5	14,200	4745×2192×2050
CNC HSB-1625	16×2500	2°20′	≥8	25-800	18.5	11,000	3245×2180×2000
CNC HSB-1632	16×3200	2°20′	≥7	25-800	18.5	13,500	3945×2477×2035
CNC HSB-1640	16×4000	2°20′	≥5	30-800	18.5	15,300	4745×2477×2035
CNC HSB-2025	20×2500	2°40′	≥6	20-800	30	13,000	3260×2452×2060
CNC HSB-2032	20×3200	2°40′	≥5	30-800	30	18,000	4150×2450×2300
CNC HSB-2040	20×4000	2°40′	≥4	30-800	37	21,000	4855×2600×2400
CNC HSB-2050	20×5000	2°40′	≥4	20-800	37	30,000	5900×3000×3300
CNC HSB-2525	25×2500	3°	≥5	40-800	37	16,500	3320×2452×2260
CNC HSB-2532	25×3200	3°	≥4	40-1000	37	22,000	4200×2500×2400
