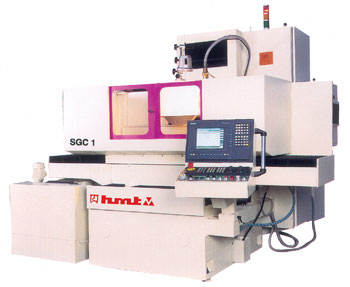

Contact SupplierState-of-the-art grinder ideally suited for tool room and production applications.Suitable for precision grinding and material removal in short time.The compound table version adopted is the most popular concept in this category of machines.Wheel spindle supported on large diameter angular contact ball bearings.Wheel head slide movement and transverse movement of compound table on preloaded, antifriction, linear recirculation roller bearings.X & Z axes driven by directly coupled digital AC servomotors.
Table clamping area (lxw) | mm | 800x400 | |
Size of grinding wheel (dia. / bore x width) | mm | 400 / 127 x 50 | |
Wheel speed | rpm | 1500 | |
Max. distance from table top to the underside of the wheel | mm | 425 | |
Size of electromagnetic chuck (lxw) | mm | 800x400 | |
Max. stroke - X / Z / Y | mm | 960 / 460 / 500 | |
Max. speed - X / Z / Y | m/mm | 25 / 3 / 1.5 | |
Control system | Siemens/Fanuc |
