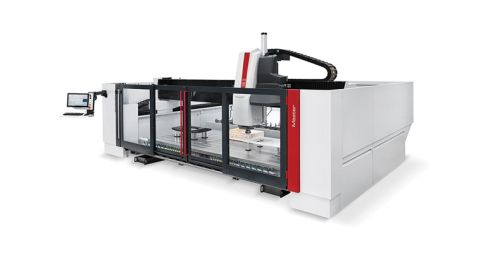

CNC Stone Master

Listing ID #4281966

  • Supply Type Manufacturer, Exporter, Supplier
  • Preferred Buyer Location All over the world

Intermac’s new Master 38.3, part of its series of CNC work centers, is designed to deliver maximum flexibility and productivity for shops machining marble, natural stone, quartz and ceramic....
View More Details
Send Enquiry

Company Information

  • Member Since 8 Years
  • Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Product Details no_img_icon

Intermac’s new Master 38.3, part of its series of CNC work centers, is designed to deliver maximum flexibility and productivity for shops machining marble, natural stone, quartz and ceramic material. The new robust Master series offers a greater tool change capacity and is available with a variety of options to accommodate all manufacturing requirements for countertops, vanities, fireplaces, sculpturing, flooring, facades and coverings, with the highest safety standards.

In addition, the integrated interface on the new parametric 2D-3D I-Cam makes it possible to execute all necessary operations within the same working environment, through a high level of integration, with the most common software and machines on the market.



  • Features
  •
   Active safety features in the front protection devices and rotation magazine.  Ergonomic front guards of a suitable height that are also explosion-proof (certified by external bodies with “detonation” tests).  Side and rear guards made of a metallic material subjected to special anti-corrosion painting cycles.  Electric and pneumatic systems fully integrated in the machine and protected by closed doors.  Inaccessibility of moving machine parts.  A clean working environment (water and machining residues are not dispersed).  Reduced noise levels, fully complying with the machinery directive


3 AXIS Model 33 Model 38 Model 45
Maximum machinable piece size (3-axis grinding with tool of diameter 100mm) mm 3,300 x 1,600 * 3,800 x 2,000 4,500 x 2,500
Z axis stroke mm 465 465 465
C axis stroke (optional)
T axis stroke (optional)   +/-2.5° +/-2.5° +/-2.5°
Max axis speed (X, Y, Z) m/min 60, 70, 18 60, 70, 18 60, 70, 18
Work table height ("high table" version) mm 535 (740) 535 (740) 535 (740)
Electrospindle power In S1 (S6) kW 15 (18) 15 (18) 15 (18)
Max electrospindle rotation rpm 12000 12000 12000
Tool coupling   ISO 40 ISO 40 ISO 40
Tool magazine for up to 53 61 69
Power required kW / HP 22,5 / 30 22,5 / 30 22,5 / 30

Company Details close-icon

Established in the year 2015, at Ahmedabad (Gujarat, India), we “Art Auto Machinery”, are engaged in Manufacturing, Trading and Supplying a broad assortment of CNC Machine, Dust Collector, Vacuum Membrane Press, Laser Engraving Machine, etc. The offered products are available in various specifications as per the exact requirements of clients. We manufacture these products using excellent quality raw material and cutting-edge technology keeping in mind set industry norms. Our quality experts sustain a stringent vigil throughout production process and check each product on various quality parameters. Further, our quality experts ensure that these products are manufactured in adherence to set industry norms. These products are highly appreciated by our clients for attributes like excellent performance, sturdy construction, simple operation and longer service life. Additionally, we also provide CNC Engraving Service and Installation And Maintenance Service to our clients.
We are backed by a modern infrastructural base to carry out our business process. Equipped with ultra-modern machinery and technology, this base comprises diverse units like production, quality testing, warehousing, packaging, etc. Also, our infrastructural base empowers us to carry out the whole production process in an efficient and hassle free manner. Fostered with a team of adroit professionals, we have been able to offer the finest quality products to our valuable clients as per their precise requirements. Our professionals hold immense industry knowledge and have affluent domain expertise, which facilitate them to manufacture products in sync with set quality standards. Also, we assist our professionals to improve their knowledge by conducting several training sessions, which keep them abreast existing industrial development.
  • Nature of Business Manufacturer / Exporter / Supplier / Retailer / Retailer / Distributor / Trader
