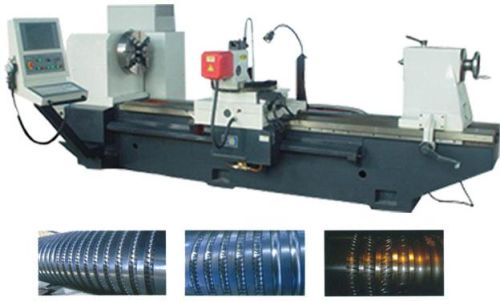

CNC Roll Notching machine

CNC Roll Notching machine

Listing ID #3934172

Get Latest Price
  • Head Stock Chuck diameter (4 Jaw Chuck Diameter)400mm
  • Notching for Re-Bar Diameter06mm - 050mm
  • Overall Dimension (L x W x H) (Approx)4000 X 1500 X 1900mm
  • Max. Diameter Of Processed Roller550mm
  • Supply Type Manufacturer, Exporter, Supplier
  • Preferred Buyer Location All over the world
View More Details
Send Enquiry

Company Information

AKSHI ENGINEERS
Bahadurgarh, Haryana
View Number
  • Member Since 7 Years
  • Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier
View Company Details

Product Details no_img_icon

  • Notching for Re-Bar Diameter 06mm - 050mm
  • Overall Dimension (L x W x H) (Approx) 4000 X 1500 X 1900mm
  • Head Stock Spindle Bore MT#5
  • Motors & Drives AC Servo Motors & Drives
  • Max. Diameter Of Processed Roller 550mm
  • Min. Feed Rate 0.001mm / deg.
  • Head Stock Chuck diameter (4 Jaw Chuck Diameter) 400mm
  • Omitting Ribs Free Choice
  • Spindle Speed Of Flying Cutter Head (Notching) 0-600 RPM
  • Spindle Speed Of Milling Head (Marking) 0 — 3000 RPM
  • Notching per Rolls Free Choice
  • CNC 4-Axis Control System Siemens CNC Controlers
  • Max. Length Of Processed Roll 2500mm
  • Machine Weight (Approx) 4700 K.G.

FEATURES

  • Designed to Get Swivel Function And Fly Cutting Function In One Unit.
  • Suitable for Casting Rolls and Tungsten Carbide Roll Rings.
  • Sturdy and rigid machine construction.
  • One Machine For Two Jobs : Roll Notching & Name Marking.
  • Fully Automatic Notching From First Grove to Last Groove.
  • Equipped With 'Siemens' High Performance 4-Axis CNC System.
  • System Can Continue Job From Pause After Tool Changed During Process.
  • High Precision Ball Screw To Ensure Precision Transmission For Longitudinal.
  • Precision Rolling Arc Guide-Way Provide Swivel Head With Fine Position Support.
  • Notching on One groove can be done is about 15 - 20 Minutes.
  • Name Marking on One groove can be done is about 10 Minutes.


Interested in this product? Ask for more details & Latest Price from seller
Send Enquiry

Company Details close-icon

Akshi Engineers, actively involved in Designing & Manufacturing of equipment and systems for Steel rolling mills. Established in 2006 in a modest fashion, company has grown steadily over the years to become a reputed organization in the field of manufacturing high quality capital equipments for steel industry. With decades of experience in the field of design, manufacturing, installation of steel rolling mills we raise the bar constantly and set a very high bench mark. Apart from building equipments, we design and implement Rolling Mill Project on Turnkey basis.
