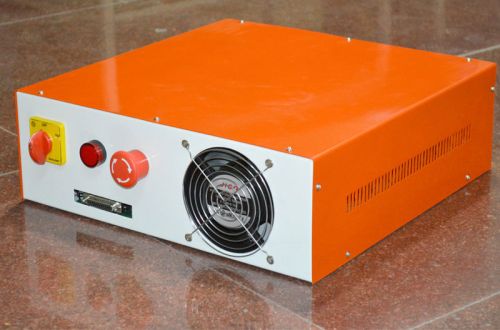

Contact SupplierWe are offering cnc mach3 control bo.
Specifications of mach3 control panel:
pp-bob2-v1 breakout board for cnc machining.
3 stepper drives for 3 axes. Two options for stepper drives are available:
drive 087 generates 1.2-7.0 a phase current.
Drive 484 generates 0.7-4.2 a phase current.
Power supply: transformer + tl-psb1 linear power supply board. Following options are available for the transformers:
option 1: 42v, 10a toroidal-crgo transformer with transformer rating 300va continuous.
Option 2: 60v, 12.5a toroidal-crgo transformer with transformer rating 500va continuous.
Communication terminals:serial terminal for interfacing breakout board with relevant cnc controlling pc based software.
Operating interface: external connectors for connections.
Inputs connectors:
number of input connector: 1.
Number of inputs: 4.
Emergency input: 1
outputs connectors:
axes outputs connectors: 3 for 3 axes motion control, step and direction output.
Spindle output (vfd output) connector: 1.
Coolants relay connector: 1
220v power indicator: 1.
Emergency switch: 1
supply voltage: 220v.
Fuse: 2a.
Dimensions: 400x400x130 (in mm).
Weight: 15 kg approx.
