Cnc Lathe

Listing ID #4228703

Get Latest Price

Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

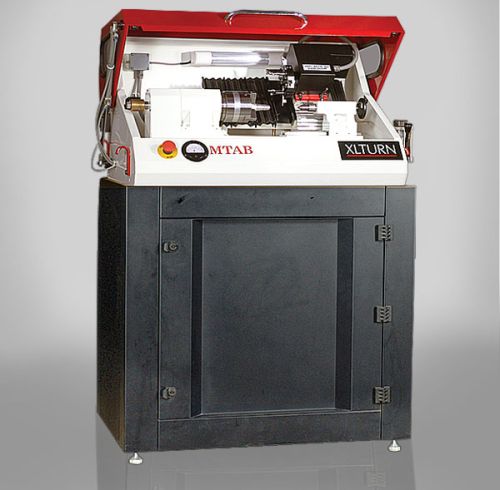

XLTURN is a 2-axis benchtop slant bed lathe with 8 station programmable turret. It is the ideal solution for training and prototyping. The machine is offered with Fanuc or Siemens emulated control system or MTAB Industrial Control. XLTURN can be integrated with modular automation components to create Smart Factory Automation Systems(FMS, CIM).

View More Details

Send Enquiry

Product Details

Axes
X- Axis Travel	80 mm	3.15 in
Z- Axis Travel	180 mm	7.1 in
Capacity
Chuck Size	100 mm	3.94 in
Maximum Turning Diameter	32 mm	1.26 in
Maximum Turning Length	120 mm	4.72 in
Distance between Centers from Spindle Face	210 mm	8.27 in
Spindle
Spindle Nose Taper	A2-3 / MT3
Spindle Speed Range	150 - 3000 RPM
Spindle Motor Capacity	1 HP
Turret
Number of Stations	8
Tailstock
Tailstock	Yes
CNC Details
Control	Emulated Control (Fanuc, Siemens) OR MTAB Industrial Control
Lubrication	Centralized Lubrication System
Power Source
Main Supply	Single phase, 110V/230 V, 50/60 Hz
Machine Dimensions (Approx.)
L x W x H (W/o Work Bench)	880 mm x 575 mm x 615 mm	34.7 in x 22.7 in x 24.2 in
Weight (W/o Work Bench)	150 kg	331 lbs
Features
Compatible / Upgradable	FMS & CIM System

Company Details

MTAB Engineers Pvt. Ltd headquartered in Chennai is a leading name in Advanced Manufacturing Technology since 1985, serving two segments of customers: Skill & Technical Education Customers and Product Manufacturers. Since its inception, the company has grown significantly with respect to both product portfolio and market presence. MTAB has expanded its product portfolio to include high volume production and special purpose CNC machines for the industry and CNC, robotics, mechatronics, manufacturing automation, simulation software, e-learning and industrial skill training packages, for its skill development markets.
With over 4000 installations around the world, MTAB offers comprehensive solutions with hardware, supporting software and training curriculum in the field of advanced manufacturing technology. In the industry segment, MTAB is an innovative player and is establishing itself as a high quality solution provider. Given its strengths in machine design and automation, MTAB advises customers with the best combination of machine and automation in order to achieve high levels of productivity.
