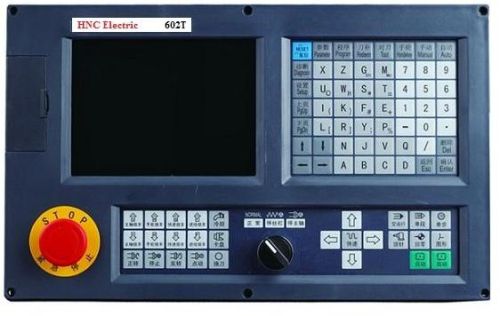

CNC controller for Turning Machine

Listing ID #3981698

HNC602T is our latest developed, affordable system for cnc lathe & grinding machines. The control circuit adopted with high speed ARM processor (new industrial grade), large scale filed programmable gate array (FPGA) technology, multi-layer PCB print

HNC602T is our latest developed, affordable system for cnc lathe & grinding machines. The control circuit adopted with high speed ARM processor (new industrial grade), large scale filed programmable gate array (FPGA) technology, multi-layer PCB printed circuit board. The system itself has equipped with high integrated chips and surface mounting components, which brings a more compact and reasonable structure, a better guarantee of the system reliability and stability.

Key features: high speed real-time control(the max fast moving speed can reach to 30m/min, the max feed interpolation speed can up to 15m/min);high precision; using 800*600 lattice TFT LCD brightness adaptive technology ensured a longer service time, eliminated the disadvantage of display brightness varies with ambient temperature. English display menu, operations are very straightforward and convenient.

This is a two-coordinate linkage, open loop cnc system, representing very common application for cnc lathe. It has powerful functions, rich commands, being able to control the AC servo system directly. The programming codes are in accordance with ISO international standard. Choosing the relevant series of servo system from HNC Electric will guarantee you a better cost effective solution.

Features:

• Coordinate axes: 2
• Adopting high-speed ARM / DSP / FPGA / hardware interpolation technology
•  Max speed: 60m/min, Feed speed: 0.01…30m/min
•  USB interface
•  RS232 interface
•  Memory for part program: 32M,  No limit of the program number
•  Program pre-load for small line segment machining, ensure the continuous machining
•  Max Thread pitch: 1000mm
•  54 series of G code, satisfy all kinds of machining
•  Automated Tool compensation, C tool compensation function
•  Automated chamfering and rounding function
•  Two-channel analog output, allow to control two spindle

System constructions

•  32-bit high performance, low power consumption industrial grade ARM microprocessor.
•  64MB memory.
•  32Mb user store room.
•  8 inch real color LCD display with 640x480 resolution
•  High anti-jamming switch power.
•  USB port
•  RS232 port
•  Spindle servo speed control/spindle frequency conversion speed control.
•  Manual pulse generator.
