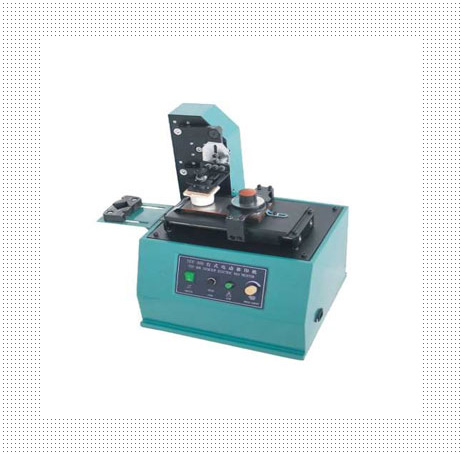

Contact SupplierClosed Cup Motorized Pad Printing Machine Model PPM – 520C is an automated replacement for Screen Printing & is used for very high quality printing of size up to 2½” X 2½” for LOGOs, manufacturing date, ingredients, bar code, issues, etc. on industrial products of food, cans, beverage, cosmetics, electric apparatus, pharmacy, etc. It can print on any flat, curved or uneven surface on metal, plastics, glass, ceramic, nylon etc. at speed upto 2000 strokes per hour. It uses a flat metal etched plate which carries the image, thick liquid paste ink which is cleared with a closed cup scraper & a soft silicon rubber pad which picks up the image from the plate & transfers it on to the substrate. (Free accessories include small Silicon Pad & Metal Plate). This coder is suitable for printing LOGOs & fixed information on small jars, glass, foil, tins, bottles (curvature), etc. Multiple machines can be used for multiple colors.
Printing Height | 0 – 300 mm |
Dimension | 680L X 440W X 620H |
Power | 220 V, 50 Hz |
Speed | 0 – 60 Impressions / minute |
Table Area | 80 mm L X 175 mm W |
Weight | 33Kgs |
