Qualification tests are carried out to guarantee optimum product quality from all manufacturing and pharmaceutical research companies. These tests verify whether ambient cleanroom conditions affect product quality. If environmental cleanroom parameters affect the product, reviews are conducted with regards how conditions can be reduced, so that high output standards are adhered to.
What Is Differential Pressure?
When a cleanroom door is opened, impurities can find their way in, causing a reduction in pressure. Conversely, when the pressure within a cleanroom is too high, energy is wasted.
Temperature, humidity, airflow and pressure are all cleanroom parameters that have to be well managed. Pressure is most critical and a key parameter; for instance, when pressure is combined effectively with the other two parameters, cleanrooms function properly.

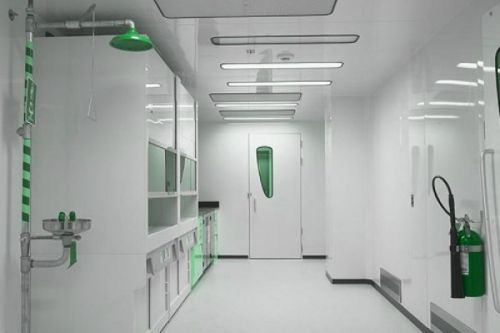

Pressure And The Cleanroom
A cleanroom system is akin to having a mini-building within a larger building. A cleanroom has its own HVAC system, flooring, lighting and differential pressure. The exterior wall of a building should never be used as a cleanroom wall. Also, entry or exit doors should never be the same points for a cleanroom’s interior, because of wind pressure. The implication of a 30 mile per hour wind is a wind pressure of .47 ‘‘w.g. (116.2 Pa). Subsequently, an open door will cause IAQ (Inside Air Quality) problems.
Room pressurisation is a necessity to ensure product integrity. Opening an average sized single width door increases leakage area by 20 square feet or more on average. The implication is a disruption with an appreciable, differential static pressure value. To create a balance, there will need to be an excessive amount of differential airflow.
Measurement Of Differential Pressure
A visual indicator gauge is deployed to compute differential pressure. It is designed to compute and read a differential between two pressure points within a process environment. The gauge is connected to pressure monitored points from two inlet ports. If the gauge isn’t deployed, a control system or operator would need to manually monitor two separate gauges before disclosing their differential readings. This would be a cumbersome process.
Saakvee Technologies are cleanroom experts and market leaders who offer the DE21 transmitter, which observes and verifies the slightest differential pressure in cleanrooms.
The DE21 is a 2-wire DIN capturing, computing and reading device. It comes with capacity measuring cells to cover diverse low-pressure range areas, combined with a high overpressure guard feature. DE21 instruments provide lengthy, drift-free operations and high precision stability, since no signal broadcast is needed. DE21s are mainly deployed in laboratories, industrial furnaces, filters, blowers and packaging machines.
Key DE21 Features
DE21 supports the following:
DE21 Functionality
The DE21 instrument provides excellent sensor stability and repeatability. This is possible with the presence of an ultra-thin single crystal diaphragm (patented silicon-on-glass technology feature).
Mechanical degradation won’t occur in the long run, because the silicon diaphragm sensor isn’t manufactured with organics or glue. Notably, it’s been proven that organics contribute to a drift or unwanted degradation.
DE21 applications
The Testo 521-3 is a computing device for differential pressure in cleanrooms. With high level precision and clear data information, its integrated temperature-compensated sensor reads measurements to an accuracy of up to ± 0.5 Pa. There is a wide range of units to choose against pressure measurement, which include: mbar, bar, hPa, Pa, kPa, mmH2O, inH2O, psi and torr.
Features
We at Saakvee Technologies India Private Limited are the leading manufacturers of modular clean rooms. Under the leadership of our founder, Mr. Veeresh Chavan, we have carved a name for ourselves in the industry as the best.
Today we cater to the global community with our wide array of products. Our product range includes galvanized iron, food processing, softwall modular and medical device clean rooms. Other products include portable clean rooms, HVAC clean rooms and walkable ceiling systems. We also manufacture clean room wall panels, equipment, furniture, flooring services and lights.
We also provide a variety of cleanroom services. Our services help our clients to remain hassle-free so that they can continue with their work. We work in close quarters with our clients as per their requirements and needs. You can trust us to deliver the best in terms of products and services.
Today we are a world name because of our dedication to the production process. We manufacture top-quality clean rooms and other associated products. These attributes have made us a renowned name in the industry. We hope to remain committed to our quality and dedicated services. We assure you of the best so long as we have your trust and cooperation.
Our team of professionals is the best in the industry with their knowledge, dedication and technological know-how so you can trust us. Ours is a name that is here to stay in the market.
