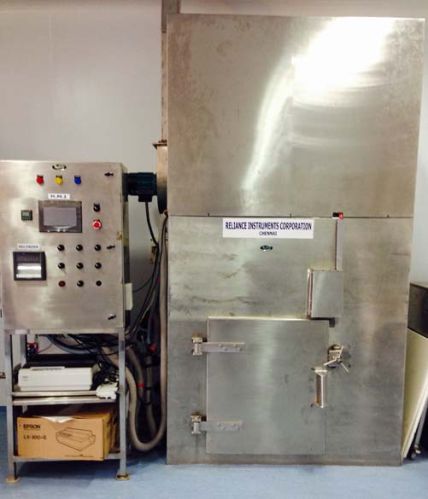

We have made our mark as a capable Manufacturer and Supplier of Class 100 Dry Heat Sterilizer from Tamil Nadu, India. We are supported by a team of skilled and experienced professionals who make use of premium stainless and steel and latest technology for its production. Our Class 100 Dry Heat Sterilizer is offered at discounted prices.

Dry heat sterilizer or Depyrogenation sterilizer are used in pharmaceutical and Biotech Industry  for complete destruction & removal of all micro-organisms by means of dry heat using air as a medium of Sterilization for depyrogenation of glassware, containers, vessels, machine and components.The air is heated electrically by heating elements and is circulated in the chamber by a re-circulation blower. The system also comprises of pressure Module for fresh air intake and an exhaust module for exhausting the air

Specifications :

• Inner Chamber : SS 316
• Maximum Temperature : 300°C
• Working Temperature : 250 °C
• Door : Hinged Door (Single Door / Double Door)
• Mode of control : PLC/ SCADA
• Door Seal : Silicone Gasket
• Insulation : Resin Bonded Glass Wool

Features :

• HEPA filters are installed in the fresh air, recirculation and exhaust module. In addition, 0.5 micron "Micro B" filter is installed as a pre-filter to the Fresh Air HEPA

• Three modules for air handling

  • Fresh Air Module
  • Recirculation Module
  • Exhaust Module

• Temperature Uniformity of +/- 2 degree Celsius within the chamber for the entire cycle.
• Adjustable Damper is provided in the Exhaust Module.
• Extended shaft motor for chamber recirculation.

Safeties and Alarms :

• High temperature cut-off independent of the main process controller
• Over-load and single phase protection for all electric motors.
• Interlock to prevent switching on of the heaters in case the circulation blower stops.
• Sterilization timer stop in case of temperature drop
• Sterilization timer reset in case of temperature drop
• Blower trip
• Utility failure alarm.
• Door Interlocking to prevent simultaneous opening of both doors.
• Door Process lock to prevent opening of doors when process is on.

Optional :

• Manual Back up
• Thyristor controlled operation
• Strip chart recorder
• Printer
• Suitable Shelves for Handling
