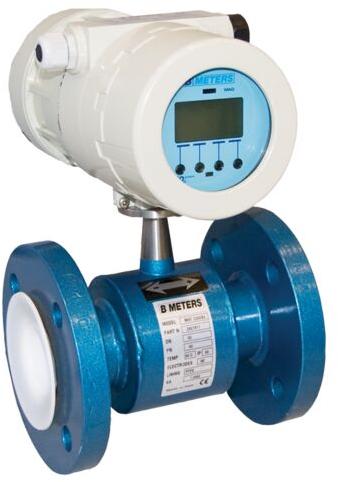

Liquid Flow Meter is a micro-controller based full-bore type electromagnetic water flow meter, used for various industrial applications. Liquid Flow Meter is designed to measure the flow rate of conductive liquids & slurries in closed pipes. Based on 'Pulsed DC' technology, Liquid Flow Meter ensures accurate measurements in the form of electrical signal 4-20 mA DC linearly proportional to volumetric flow. Liquid Flow Meter is based on Faraday's law of electro-magnetic induction. A magnetic field is generated by the instrument in the flow tube. The fluid flowing through this magnetic field generates a voltage that is proportional to the flow velocity. Corresponding electrical output is provided with respect to measuring voltage. Liquid Flow Meter has robust metal structure, which makes it easy to maintain and compatible with high-pressure working environment.
Working Principle : Liquid Flow Meter is based on Faraday's law of electro-magnetic induction. A magnetic field is generated by the instrument in the flow tube. The fluid flowing through this magnetic field generates a voltage that is proportional to the flow velocity. Corresponding electrical output is provided with respect to measuring voltage.
Other Information :

• Indication through LED / LCD
• Full Bore type
• Microprocessor based
• Simple & cost effective construction
• Provides wide flow ranges.
• Operates over wide ranges of temperature & pressure
• Easy maintenance as no moving parts
• Pulsed DC coil excitation
• Flame-proof, IP-65, IIA, IIB CMRI certified housing
