Check Valves

Listing ID #3896667

Get Latest Price

Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

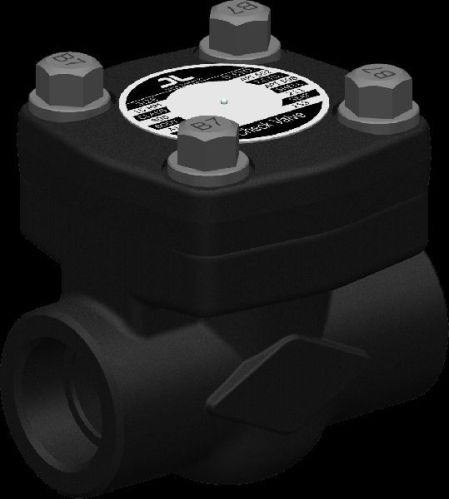

DL Valves Forged Steel Lift Check Valves are manufactured as per ISO 15761/API 602 Standard and Tested to API 598 Standard. DL Valve designed piston type horizontal liftcheck valve incorporating....

View More Details

Send Enquiry

Product Details

DL Valves Forged Steel Lift Check Valves are manufactured as per ISO 15761/API 602 Standard and Tested to API 598 Standard. DL Valve designed piston type horizontal liftcheck valve incorporating self-cushioning effect. DL manufacturing range covers Regular Port and Standard Port both types of Forged Steel Check Valve. Regular Port non return valves have fast delivery or ready stock, for Standard Port check valve do manufacturing on order basis. DL Valves offer Forged Steel Check Valve in wide range of Body Material like ASTM A 105 - Forged Carbon Steel, ASTM A 182 F304/F304L/F316/F316L - Forged Stainless Steel, ASTM A 182 F11/F22 - Alloy Steel to suit industrial application. DL Forged Steel Lift Check valves are available under any Third party inspection also. For High Pressure & Temperature application Stellited ST6 Face Seat available. Forged Check Valve available is Threaded End, Socket Weld End, Butt Weld End and Flanged End Connection. For Flanged End Forged Steel Lift Check Valve flanges will be a welded with a valve body not integral forged.

Design & Testing International Standard of Forged Steel Gate Valve

Material of Construction (MOC) for Forged Steel Gate Valve

Design Standard	ISO 15761/API 602
Inspection & Testing Standard	API 598
Flange End Standard	ASME B16.5/ For Face To Face ASME B16.10
End Connection	Flanged End to ASME B16.5, 150#/300#/600#(FLANGES WELDED/FABRICATED TO BODY) Screwed - Threaded End to ASME B1.20.1 Socket Weld End to ASME B16.11 Butt Weld End to ASME B16.25
Manufacturing Size Range	1/2"(DN15) to 2"(DN50)
Pressure Rating of Valve	150#/300#/600#/800#/1500#/2500#
Valve Operation	Self-Actuating

Body & Bonnet	ASTM A 105 - Forged Carbon Steel ASTM A 182 F304/F304L - Forged Stainless Steel ASTM A 182 F316/F316L - Forged Stainless Steel ASTM A 182 F11/F22 - Alloy Steel
Trims / Working Parts	ASTM A 276 T - 410(SS-410 - 13% Cr.) ASTM A 276 T - 304/304L (SS-304/SS-304L) ASTM A 276 T - 316/316L (SS-316/SS-316L) Stellited - ST6
Gasket	SS 304/316 Spiral Wounded with Graphite Filled
Bolts/Stud & Nuts	ASTM A 193 GR. B7/B8/B8M/ A 194 GR. 2H

Salient Features of Forged Steel Steel Gate Valve	Special Option of Forged Gate Valve	Forged Steel Gate Valve Application
1A Compact But Extremely Sturdy Design for High Pressure & Temperature Service 2Bolted Cover Design, easy to open cover 3 Piston Type Body Guide Disc 4 Assure Perfect Alignment of Disc & Seat Ring 5 Spring Loaded on request 6 High Tesile B7/B8/B8M/2H Fasteners	1 Other Material of Construction (F304/F316/F304L/F316L/F11/F22) 2 Flanged End, Flange Welded to Body, Rating 150#/300#/600# 3 Butt Weld (Welded Neck)/Socket Weld/Screwed(BSP/NPT) Connection 4 Seat & Disc Stellited ST6 Hard Face 5 Special Trims on Request	1Power Plants & Process Industries 2 Petrochemical Plants & Refineries 3 Fertilizers Plants 4 Process & General Industries 5 Sugar Industries & Distillery Plants 6 Water, Steam, Gas, Oil & other Non-aggressive media 7 Other application on request
