Cast Iron Horizontal Check Valve |
|
Product |

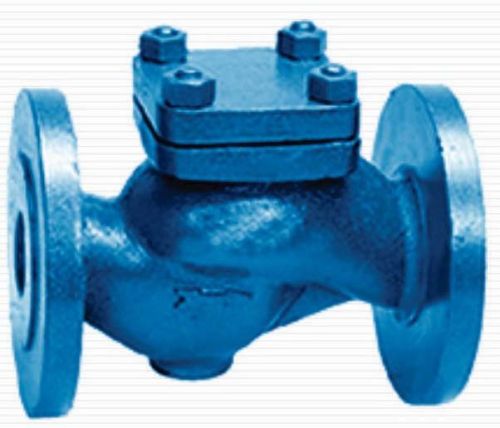

SANT' Cast Iron Horizontal Check Valve |
Product Standard |
BS:5153 |
Type of Pattern |
Straight Type |
Pressure / Class / Rating |
PN 16 |
Body Material cum Standard |
Cast Iron IBR 86 to 93 Gr.A |
Description |
Bolted Cover |
Type of Seat |
Renewable disc |
Type of Disc |
Renewable disc |
Trim |
SS AIS 1410 |
Gland Packing |
Graphited Asbestos |
End Details |
Flanges as per DIN 2533 RF (PN 16) Undrilled |
Components |
Materials |
Specifications |
---|---|---|
Body, Bonnet, Valve Disc |
Cast Iron |
IBR 86 to 93 Gr.A |
Body Seat Ring, Valve Disc Ring |
Stainless Steel |
AIS1410 |
Gasket |
Compressed Asbestos Fibre |
IS:2712 Gr.C |
Fasteners |
Mild Steel |
- |
Dimensions -15 mm to 100 mm
