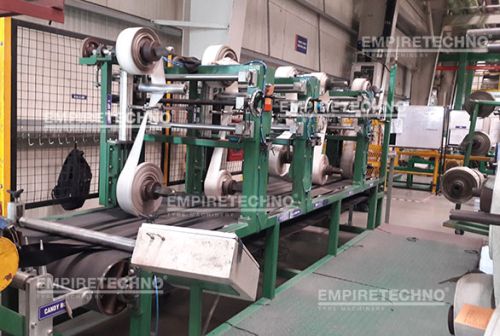

Chafer Slitter machine

Listing ID #4371907

Get Latest Price

Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Product Details

Chafer Slitter machine is used to Slit Fabric/ Nylon coated cross woven at the set width and rewound on spoolers/shell in surface winding, according to product thickness, on each spooler/Shell. It is aimed to feed tire building machines/Inner linner machine with minimum down time. This cut material represents the joint less chaffer which is oblique in modern tire design. Hence, the correct preparation and quality has distinct influence on the performance of tires. This machine have arrangement to run both Automatic & Manual Mode. The Loading/ Unloading of material are manual. The slitting performed on this machine is by means of positively driven toothed rotary cutter or Crush cutter.

PRODUCT TYPES

Chafer/Fabric Cross Woven

FEATURES

State of the art design
Highly precision material centering system before material enters winding station
Complete PLC control and touch panel for easy operation of machine
Provision for liner feeding on each spool/shell with independent pneumatic brake on liner roll to maintain uniform tension
Simple cutter arrangement to set at desired cut width
Feeding of material manually at adequate working height.

TECHNICAL SPECIFICATION

S.NO.	ITEM DESCRIPTION	DIMENSION/TYPE
1	Cutting Type	Toothed rotary cutter or Crush Cutter
2	Parent Roll Width	800 mm
3	Parent Roll Diameter	Max 500mm
4	Parent Roll Weight	Max 400 kgs
5	Slit Width	Min-35mm
6	No of Strips	As per user requirement
7	Wind up Roll Diameter	Max 500mm
8	Wind up Shell Length	400 mm
9	Line Speed	Max-30 Meters/Min
10	No of winding stations	Min-4 stations & Max-8 stations
