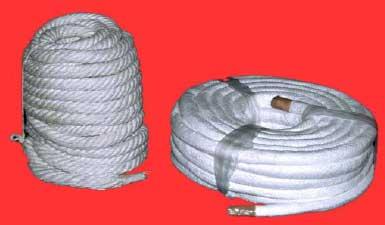

Contact SupplierTwisted Ceramic Fibre Rope is made from Ceramic Fibre Yarn and reinforced with Fiberglass/SS wire. Braided ropes are made from ceramic fiber enclosed in a Glass Fibre Braid or SS Wire Braid to give excellent handling strength. The above range of Ceramic Fibre Rope is light weight, resilient, high temperature resistance and chemical stability. Additionally, we are renowned as one of the stupendous Braided Ceramic Fibre Rope Manufacturers in India.
Features
High temperature stability
Thermal shock resistance
Low heat storage
Low weight
Good chemical stabilityApplications
Inspection door seals
Gaskets & flange seals
Expansion joint packing for refractory brick work in furnaces and kilns.
Pipe wrap or insulation in marine Generators
Insulation lagging for pipes
Radiant tube packing in boilers and furnaces
Asbestos free and ideal replacement for asbestos rope products
Type : High Temperature refractory Fibre Braided and twisted Ropes.
Classification Temperature : 1260 °C
Availability
Standard Sizes : 4mm - 60 mm Dia X 25 Mtrs Length.
Physical Properties | TWISTED ROPE | BRAIDED ROPE |
---|---|---|
Classification temperature0C | 1260 | 1260 |
Chemical composition ( % ) | ||
Al2O3 | 42 - 46 | 42 - 46 |
SiO2 | 54 - 58 | 54 - 58 |
Loss on ignition ( % ) | < 25 | < 1.0 |
Density (Nominal) kg/m3 | * | 200 |
Availability and packing - 25 mtrs Length Diameter (mm) | ||
6 | X | X |
8 | X | X |
12 | X | X |
19 | X | X |
25 | X | X |
30 | X | X |
35 | X | X |
40 | X | X |
50 | X | X |
60 | X | X |
* Density depends on diameter of the Rope.
All above Ropes are subjected to standard tolerances. The values given herein are typical values obtained in accordance with accepted test methods and subject to normal manufacturing variations. They are supplied as a technical service and are subject to change without notice. Therefore, the data contained herein should not be used for specification purposes. |
