Centrifugal Pumps

Listing ID #3928162

Get Latest Price

Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

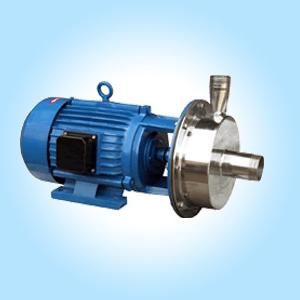

Complete SS 316 Horizontal centrifugal pumps with High head, High discharge design. Hydraulically balance impeller gives better economy and lower power consumption. Sealing arrangement by Carbon v/s Ceramic Mech. Seal, which compatible with almost all liquids. Special seal or gland packing can be supplied on request. Ideally suitable for chemical transfer from underground to overhead tank, unloading from tanker, washing and cleaning of parts, Food and dairy products, beverages etc.

View More Details

Send Enquiry

Product Details

At 2900 RPM													Max, Temp. 250o C
Pump Model	HP	Suc X Del Size	Head in Mtrs./Capacity in M³ /hr
Pump Model	HP	Suc X Del Size	6	10	12	16	20	24	28	32	40	45	48
PP-01	0.25	12 X 12	26	14	10
PP-02	0.50	25 X 25 40 X 40	120	100	85	50
PP-02	0.50	25 X 25 40 X 40	200	150	80	30
PP-03	1	25 X 25 40 X 40			150	130	100	70	40
PP-03	1	25 X 25 40 X 40		280	260	220	150	100
PP-04	1.5	40 X 40 50 X 50				240	160	130	95	50
PP-04	1.5	40 X 40 50 X 50			280	230	170	135	95
PP-05	2	40 X 40 50 X 50					200	175	135	90
PP-05	2	40 X 40 50 X 50			350	270	180	150
PP-06	3	50 X 40 65 X 50				275	230	210	190	160
PP-06	3	50 X 40 65 X 50			630	540	380	250	175		80
PP-07	5	50 X 40 65 X 50							300	260
PP-07	5	50 X 40 65 X 50				710	630	570	300	230	190	145	90
PP-08	7.5	65 X 50 100 X 75					800	720	670	590	100
PP-08	7.5	65 X 50 100 X 75			1250	1180	980	820			300
PP-09	10	65 X 50 100 X 75							825	725
PP-09	10	65 X 50 100 X 75				1400	1200	1160	1000	700	620	510	410

Company Details

Plasto Pumps & Valves was established in 2001 by promoters having over a decade experience in the pump industry. During our early stage of working with the pump industry and specially in the Chemical pump section ,we found that the main problem faced by the user of Chemical pumps was leakage from the seal and maintenance & breakdown occurring frequently due to it. To resolve the above main problem of the pump user, we found that Seal-less pumps with Magnetic drive technology was the perfect solution. Hence we started our production of Seal-less Magnetic Drive pumps under the brand name of Plasto.
The technology was new and many customer were either unaware of it or hesitating to use it. Also there was a perception in the industry that Seal-less Magnetic Drive Pumps are very expensive, since other brands available in the country and imported pumps were very costly.
However we developed very cost effective and user friendly pumps, which are very easy to use and maintain. Seal-less Magnetic Drive Pumps automatically solves the problem of leakage since there is no seal used in the pump. Due to this versatile feature our pumps found very good response in the market and industry. Today our pumps are supplied all over the country and have established a nation wide dealer network to offer better Sales & Service to the customer.
We have also added to our product list other varieties of pumps i.e. High capacity Seal type pumps in PP, Small & medium sized monoblock PP pumps and Centrifugal SS 316 pumps. We are also on the verge of introducing another break through technology of Rotary Sliding Vane pumps. These are positive displacement pumps with high efficiency and performance than conventional Rotary Gear Pumps used for handling viscous liquids.
