Wp type pumps are used in air � condition plants,
fire fighting applications, food process industry,
sugar industry, paper & pulp industry, dyeing
industry, steel plants, sea water desalination
plants, power stations and absorption plants in
environmental engineering & dewatering
purpose.
Handling of all types of clear � non aggressive
liquids, condensate water up to 90â°c, irrigation,
general water supply in agriculture & etc.

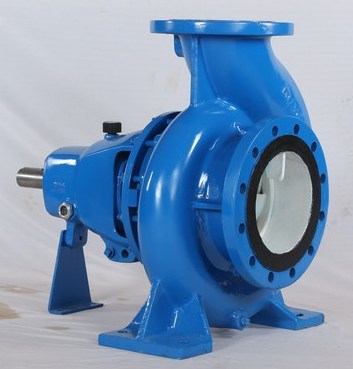

Horizontal back pull out design pumps. Closed
impeller construction with two deep groove ball
bearing and designed in accordance with the flange
standards of din 2533 ansi b 16.5 bearings are
grease lubricated and oil lubrication is optional.
Salient features
back pull out design
- steady flow
- high efficiency
- sturdy construction
- low npsh
- noise & maintenance free
- environment friendly
- shaft deflection below 0.05mm
- bearing life � more than 17000 operating hours*
material of construction
graded cast iron, 2% nici, bronze, wcb, ss 304
& ss 316
operating range
capacity : up to 550 mâ³hr
head : up to 100 mtrs (328 feet)
temperature : up to 90â°c (194â°f)
casing pressure : up to 16 kg cmâ²
pump size : dn 32 mm to dn 150 mm
speed : up to 3600 rpm
direction of rotation : clock wise from drive end
no of models : 37 models
