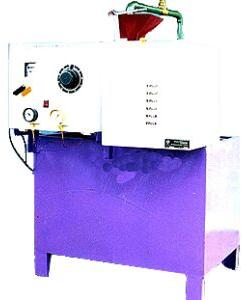

Contact SupplierThe ‘Swarg Systems & Instruments’ test rig consists of a centrifugal pump provided with three phase motor. The pump is provided with a vacuum gauge at suction & a pressure gauge on discharge pipe. Gate valve at discharge facilitates estimation of pump performance at various discharge heads. Power input to motor is measured with energy meter. Thus pump performance can be estimated at various heads.
SPECIFICATIONS
1) Centrifugal pump – 1” x 1” size Monoblock pump set 1 HP. 3phase
2) Sump tank – 900 x 600 x 600 mm height.
3) Measuring tank – 300 x 400 x 400 mm. height.
4) Energy meter for motor input measurement.
5) Pressure & vacuum gauge for measurement of head.
6) Stop watch.
7) Starter for motor.
8) The assembly of pump & control are mounted on the sump tank.
