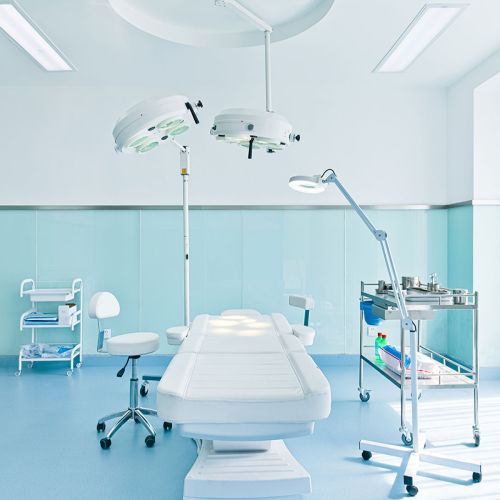

Prefabricated Modular Operation Theater, Certification : CE Certified

Listing ID #6432833

Unissi Offers Modular surgical comprehensive solution, which combines intelligent and highly- complex surgical workflows with the best technical equipment.
Why there is a need for Modular operation theatres?
Sterility – Infection free Zone
Bacteria count less that 10 carrying particles per m3 through state of the art laminar airflow system with air purity of 99.99%
Non- porous, Seamless, easily cleanable surfaces to prevent the build up of contaminants.
Reduction in the need or repetitive fumigation of MOT’s.
Work Flow management – Surgery under controlled conditions
Concealed Wiring and Medical pipeline system
All equipment mounted on ceiling suspended pendant units.
Complete clean- floor area leading to enhanced equipment and personal movement.
Aesthetics “ Pleasing work environment”
Effective lighting by maintaining LUX levels though OT Light, Plannair and peripheral lights in the OT.
Clean air quality and effective ventalation in the OT.
Pleasing work environment through the use of different wall and floor colors.
Strong attraction value for top Doctors/ Surgeons.
Key Element of Modular Operations Theater Offered by Unissi
1. Wall & Ceiling Panels
Unissi offers WIDE RANGE OF Wall & Ceiling panel from India or Imported from Europe. We use the following technologies based on the customer requirements:
Puff injected panels 50mm thick with .8mm GI/SS sheet both sides with antibacterial paint coating of 400 microns.
Corian / Solid Mineral Surface
2. Laminar Air Flow
Laminar airflow is designed to move particle free air over the aseptic operating field in one direction. It can be designed to flow vertically or horizontally and is usually combined with high efficiency particulate air (HEPA) filters. HEPA filters remove particles > 0.3 micron in diameter with an efficiency of 99.97%.
Features :
a) Control the temperature and humidity of the space.
b) Assist in the removal and dilution of waste anesthetic gases.
c) Dilute airborne bacterial contamination
d) Control the movement of air within the department, such that the transfer of airborne bacteria from clean to sterile areas is minimized
Exponential airflow system :
3. Antibacterial Coating
The Premier coating System, actively kills bacteria and fungus.
Advantages :
a) Seamless and easy to clean
b) Can be steam cleaned
c) Chemical resistant
d) Hard wearing – will withstand aggressive cleaning regimes
Flooring (Vinyl / Epoxy)
Unissi Offers both Vinyl as well as Epoxy flooring to meet the customer requirements.
Electrostatic conductive vinyl covering High resistance against chemical & mechanical strains Homogeneous installation at wall connections
In facilities where constant heavy loads and high traffic are the norm, epoxies are the recommended flooring

• Hermetically sealed doors
• Hermetically sealed doors are installed in the Modular operation theatres to control the Contamination risks in the room and disinfection is quicker.
• It also helps in maintaining positive pressure in the OT.

There are different types of Hermetical doors, there are listed as under:
Sliding hermetic door – Various sizes available from 1500 to 2100 mm as per the client requirement with view window with inbuilt or without venetian blinds.
Swing Hermetic Door – The leaf is sealed along the sides and at the top to guarantee hermetic sealing. At the bottom, it is equipped with a wind stopper which drops down towards the floor, to ensure perfect sealing Doors for X-ray rooms – Our lead lined automatic doors for x-ray rooms guarantee effective isolation thanks to the lead laminate inserts both on the door and on the vision panel. Available as normal or hermetic doors depending on the requirements of the area.
Clear View Doors – Sliding Hermetic sealed doors with clear view doors as they offer excellent visibility of areas whilst maintaining the hermetic seal.
Unissi offers both Indian as well as Imported (from Europe) doors complying to international standards
Ceiling mounted Pendants
Unissi offers both Single or double arm ceiling mounted Anaesthesia and Surgeon pendants.
We supply motorized & Non-motorized pendants with electromagnetic / pneumatic breaks which allows equipment to be located at point of use for easy access to the doctor.
Our range of pendants is extensive to suit all needs
Features :
Long Working
Superior Quality
Elegant Design
OT Control Panel ( Touch Screen / Membrane Type)
Individually designed and customized for each hospital project. It is equipped with Digital Display, temperature & humidity controller, local standard time, operation time, Anaesthesia time and all medical gases alarm systems.

• Membrane Type Control Panel
• Touch screen control Panel
• X-Ray Viweing Screen
• Pressure Release Dampers
• Hatch Box
