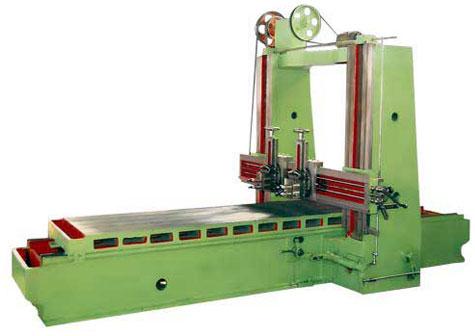

Contact SupplierThe best part about the Planner Machine is that it requires minimum input and is easy to operate, with the output being exceptionally flawless. The planer is driven through a belt, while the rack & pinion carry out a similar function for the table. The company is the leading Manufacturer, Exporter & Supplier of Planner Machine, with varied dimensions and functions.
Salient Features
Size |
ft. mm |
8' 2438 |
10' 3048 |
12' 3657 |
14' 4267 |
16' 4876 |
18' 5486 |
20' 6096 |
22' 6705 |
24' 7315 |
26' 7925 |
28' 8535 |
30' 9144 |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Length of Bed V'S |
ft. mm |
12' 3657 |
15' 4572 |
18' 5486 |
21' 6400 |
24' 7315 |
27' 8229 |
30' 9144 |
33' 10059 |
36' 10973 |
39' 11887 |
42' 12802 |
45' 13716 |
Length of bed all over |
ft. mm |
13 3962 |
16 4877 |
19 5791 |
22 6705 |
25 7620 |
28 8534 |
31 9449 |
34 10364 |
37 11278 |
40 12192 |
43 13107 |
46 14021 |
Stroke of table |
ft. mm |
8 2428 |
10 3048 |
12 3657 |
14 4267 |
16 4876 |
18 5486 |
20 6096 |
24 7315 |
26 7925 |
28 8535 |
30 9122 |
--- |
Length of table all over |
ft. mm |
9 2743 |
11 3553 |
13 3962 |
15 4572 |
17 5181 |
19 5791 |
21 6401 |
23 7010 |
25 7620 |
27 8230 |
29 8840 |
31 9449 |
Thickness of Table |
ft. mm |
7-1/2 190 |
7-1/2 190 |
7-1/2 190 |
9 225 |
9 225 |
9 225 |
9 225 |
9 225 |
9 225 |
9 225 |
9 225 |
9 225 |
Planing Width |
ft. mm |
4 1219 |
4-1/2 1371 |
5 1524 |
5-1/2 1676 |
6-1/4 1905 |
6-1/4 1905 |
6-1/2 1981 |
6-1/2 1981 |
6-1/2 1981 |
6-1/2 1981 |
6-1/2 1981 |
6-1/2 1981 |
Height under cross rail |
ft. mm |
40 1219 |
4-1/2 1371 |
4-1/2 1371 |
5 1524 |
5 1524 |
5 1524 |
5 1524 |
5 1524 |
5 1524 |
5 1524 |
5 1524 |
5 1524 |
Cutting Speed P.M |
ft. mm |
40 12000 |
40 12000 |
40 12000 |
40 12000 |
40 12000 |
30 9000 |
30 9000 |
30 9000 |
30 9000 |
30 9000 |
30 9000 |
30 9000 |
Return Speed P.M |
ft. mm |
55 16500 |
55 16500 |
55 16500 |
55 16500 |
55 16500 |
45 13500 |
45 13500 |
45 13500 |
45 13500 |
45 13500 |
45 13500 |
45 13500 |
Method of driving planer |
Belt driven |
--- |
--- |
--- |
--- |
--- |
--- |
--- |
--- |
--- |
--- |
--- |
--- |
Method of driving table |
Rack & Pinion |
--- |
--- |
--- |
--- |
--- |
--- |
--- |
--- |
--- |
--- |
--- |
--- |
