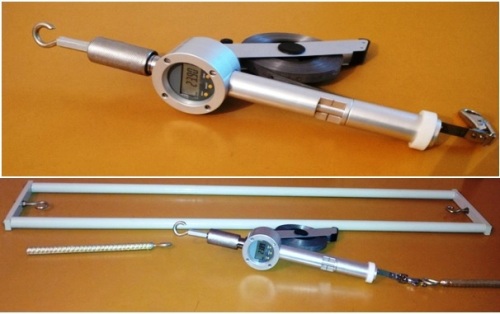

Contact SupplierThe Model SIS-400 Digital /Dial Tape Extensometer is used to measure displacement between pairs of references in excavations, tunnels, underground power houses, open mines etc. The measurement points may be permanently fixed or demountable type.
The Tape Extensometer consists essentially of a steel survey tape, a tension spring, a tension adjustment screw, a digital measuring gage and two attachment hooks, which allow the tape to be stretched between two anchor points.
SPECIFICATIONS: | ACCESSORIES: | |
---|---|---|
Measuring Range | 1m to 15, 30, 50m | Eyebolts |
Display | Digital /Dial | With M10 threaded stem |
Least Count | ±0.02mm | With groutable anchor, 100mm length |
Accuracy | ±0.1 mm | With groutable anchor, 250mm length |
Dimension | Instrument case 26” x 10” x 10” | Borehole anchors |
Weight | 4 kg | Calibration frame |
Measuring Tape | Stainless Steel | Carrying Case |
