Commuting Milling Machine Tablet Press, Certification : CE Certified, ISO 9001:2008

Commuting Milling Machine Tablet Press, Certification : CE Certified, ISO 9001:2008

Listing ID #4320569

Get Latest Price
  • CertificationCE Certified, ISO 9001:2008
  • ColorBlack, Brown, Grey, White
  • Voltage110V, 220V, 380V, 440V
  • ConditionNew
  • Supply Type Manufacturer, Exporter, Supplier
  • Preferred Buyer Location All over the world
View More Details
Send Enquiry

Company Information

RIDDHI PHARMA MACHINERY LTD verified-icon
Andheri East, Mumbai, Maharashtra
View Number
  • Member Since 21 Years
  • Nature of Business Retailer
  • Year of Establishment 1985

Ask for more detail from the seller

Contact Supplier
View Company Details

Product Details no_img_icon

  • Certification CE Certified, ISO 9001:2008
  • Color Black, Brown, Grey, White
  • Voltage 110V, 220V, 380V, 440V
  • Condition New
  • Power 1-3kw, 3-6kw, 6-9kw, 9-12kw
  • Driven Type Electric, Hydraulic, Pneumatic
  • Warranty 1year
  • No. of Stations 30

Application
Riddhi mill has been specifically designed for wet and drygranulation, pulverization or dispersion of products oringredients found in the pharmaceautical, Chemical and foodindustries.It is also finds application in Cosmetics,confectionery, Fertilizers, Insecticides, detergents andElectroflux Industries etc.
Description

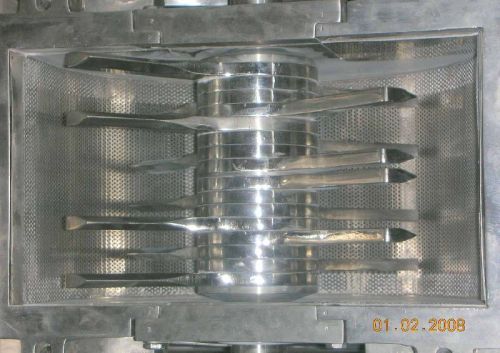

Latest improvements in design makes this unit a truely GMP model and Versatile in operation & maintenance. Unit consist of S.S.304 quality hopper, feed throat andprocessing chamber (can be provided in S.S.316 quality atextra cost ) with beaters assembly , heavy duty motor, star deltastarter with overload relay, three speed step pulley, suitable screen , S.S. cladded base having tubular legs with castors, optional jacket for the feed throat and processing chamber forcooling.OPERATION :Product kept in the hopper slide down to the enclosedchamber, where it is milled in between beaters and screento the required mesh/micron size which can be collectedat the bottom of the container.Quality and output depends upon the three main variables1) Beaters shape (knife/impact forward)2)Speed and 3)Screen size.Knife edge for coarse or large particles and impact or flatedge for finer particles.Highspeed for fine griding, low speed for coarser particles. A wide range of screens is available for various process needs.


Technical Specification

Model RDFM-I RDFM-II RDFM-III RDFM-IV RDFM-V
Out Put (kg/hr) 50 to 800 50 to 800 50 to 800 50 to 800 UPTO 2000
No. Of Beaters 16 16 16 16 32
Beaters Speed (mm) Fix Speeds
1000/2250/4500		 Variable from
1000 to 4500		 Fix Speeds
1000/2250/4500		 Variable from
1000 to 4500		 Variable from
1000 to 6000
Feeding twin feed screw Manual Manual Thro Feed Screw Thro Feed Screw Thro Feed Screw
Feed Screw Motor Not Applicable Not Applicable 0.5 HP 0.5 HP 1 HP
Feed Screw RPM Not Applicable Not Applicable 10 to 60 10 to 60 10 to 60
Screen Width (mm) 152 152 152 152 305
Screen Area sq.mm 66825 66825 66825 66825 133650
Screen Dia (mm)Fu 281 281 281 281 281
Electricals 7.5 HP. 3 PH.AC " 8 HP. 3PH.AC " 16 HP 3PH.AC
