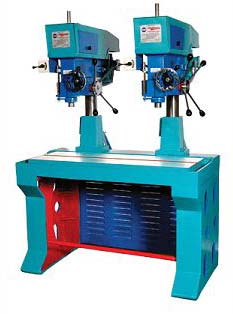

Contact SupplierGang Drilling Machine (SEW-G-19X2), offered by us, is manufactured by highly experienced and skilled professionals in accordance with the set industry standards. We are listed among the top Manufacturers, Exporters and Suppliers of Drilling Machine. We conduct stringent quality tests on Drilling Machine so as to make sure that customers receive only defect-free products. One can place retail as well as bulk orders for the machine with us.
Features :
Drilling capacity in MS | 19mm |
---|---|
No. of Head | 2 |
Column Diameter | 87mm |
Centre of Spindle to Column | 250mm |
Centre between two unit | 300mm |
Max/Min Dist. Spindle to table | 530/130mm |
Taper in Spindle | MT-3 |
Spindle travel | 185mm |
No of Speed | 8 |
Rang of Speed | 73 to 1800 RPM |
Table Size | 610 x 1200mm |
Working surface of table | 370 x 1065mm |
No. of T Slot in table/size | One / 16mm |
No of Electric Motor | 2/ 1 HP 1440 RPM |
V-Belt Section | B-52 |
