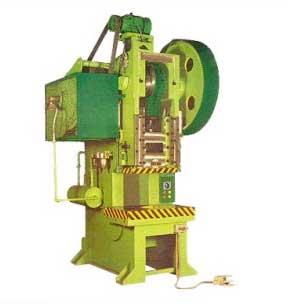

C Frame Power Press, Certification : CE Certified

Listing ID #1789725

Get Latest Price

TypeC Frame
CertificationCE Certified
Voltage380V
Power1-3kw
Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Product Details

Type C Frame
Certification CE Certified
Voltage 380V
Power 1-3kw
Warranty 1 Year
Weight 100-200kg
Driven Type Hydraulic
Automatic Grade Automatic

Technical Specifications

Model NCT-C	5 Ton	10 Ton	20 Ton	30 Ton	50 Ton	75 Ton	100 Ton	150 Ton	200 Ton	250 Ton	300 Ton
Bed Size	10" x 17" / 254" x 430"	13"-19"/ 330 x 482	14½" x 22" / 368" x 560"	16"-26"/ 406 x 660	20" x 30" / 508" x 762"	16"-26"/ 406 x 660	27" x 37" / 685" x 940"	29"x 40"/ 735 x 1015	32"x 48"/ 812 x 1220	32" x 32" / 685" x 940"	34"x 34"/ 812 x 1220
Bed to Ram	9"/230	10"/254	11"/280	12"/305	13"/330	12"/305	17"/430	19"/480	20"/510	22"/560	24"/610
Bed Bore	3½" / 90	4" / 100	4½" / 115	5" / 127	6" / 150	5" / 127	8½" / 200	9½" / 225	10½" / 265	11" / 280	12" / 305
Gear Dia	16" / 405	18" / 457	22" / 560	24" / 610	26" / 660	24" / 610	34" / 865	38" / 965	42" / 1065	48" / 1220	54" / 1370
Fly Wheel Dia	19" / 482	21" / 533	25" / 635	28" / 710	32" / 812	28" / 710	39" / 990	42" / 1065	48" / 1220	52" / 1320	58" / 1475
Crank Shaft Dia	2¾" / 70	3" / 75	3½" / 90	4" / 100	4¾" / 118	4" / 100	6½" / 106	7½" / 190	8¼" / 210	9" / 230	10" / 255
Back Shaft Dia	2¼" / 55	2¼" / 55	2½" / 65	2¾" / 70	3½" / 80	2¾" / 70	4" / 100	4¾" / 118	5" / 125	5½" / 140	6" / 150
Stroke	2" / 50	2¼" / 55	2½" / 65	3" / 75	3½" / 90	3" / 75	4½" / 115	5" / 125	6" / 150	6" / 150	6½" / 165
Hole in Ram Dia Clamping	1" / 25	9/8" / 28	1½" / 32mm	13/8" / 35mm	1½" / 38mm	13/8" / 35mm	2" / 50mm	2¼" / 55mm	2½" / 60mm	2½" / 65mm	2½" / 5mm
No. of Stokes	80	76	70	60	55	60	53	50	50	40	38
Pully Size	5"	5"	6"	6"	6"	6"	7"	7"	8"	7"	8"
Total Height	56"	64"	71"	76"	82"	76"	94"	102"	102"	128"	104"
Motor Requirement	1 H.P	1H.P	2 H.P	3 H.P	5 H.P	5 H.P	7½ H.P	10 H.P	15 H.P	20 H.P	30 H.P
Floor to Top of Bed	27"	28"	29"	30"	30"	30"	30"	30"	30"	30"	30"
