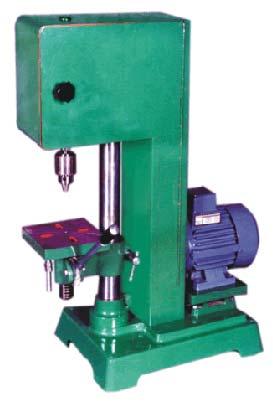

Electric 100-500kg 6mm Tapping Machine, Certification : CE Certified

Listing ID #1322352

  • After-Sales Service ProvidedSpare Parts
  • TypeAutomatic
  • CertificationCE Certified
  • Weight100-500kg
  • Supply Type Manufacturer, Exporter, Supplier
  • Preferred Buyer Location All over the world
View More Details
Send Enquiry

Company Information

  • Member Since 17 Years
  • Nature of Business Retailer
  • Year of Establishment 1981

Ask for more detail from the seller

Contact Supplier

Product Details no_img_icon

  • After-Sales Service Provided Spare Parts
  • Type Automatic
  • Certification CE Certified
  • Weight 100-500kg
  • Voltage 230V
  • Power 1-3kw
  • Driven Type Electric
  • Warranty 1 Year

6mm Tapping Machine that we offer is gaining high popularity due to its sturdy construction, high performance and longer functional life. We are named among the renowned Manufacturers, Exporters and Suppliers of Tapping Machine. The manufacturing of our Tapping Machine is done using the latest techniques under the supervision of experts. We conduct stringent quality tests on the machine as to ensure that only the defect-free product reaches the customers’ end.



Features :

  • 6 MM Tapping Machine’s Clutch Cone : Specially heat lather cone also Provide specially treatment silicon liner cone.
  • Head made from close grained cast iron accurately bored, rimering and honed in perfect paralyze between the column and spindle. Easy clamping device fitted for locking it on the column.
  • Spindle : Made from EN8 to withstand distortion it is lanced and mounted on roller bearings.
  • Table : Proportionately designed for rigidity and sufficient surface area is provided to hole down job. It can be vertically powered or can be vertically powered or raised by worm and rack raised by worm rack(19mm). The slotting are provided to hold the heavy job.
  • Base : This is of design and provides sufficient area for heavy jobs. Slots are provided for convenient holding.


Technical Specifications

Tapping Machine Capacity 6 mm.
Drilling Capacity 3 mm.
Spindle Travel/Table travel (6 mm.) 60 mm.
Distance Spindle to Column 80 mm.
Distance between chuck to base 190 mm.
Distance between chuck to work table movable
Size of base Plate-L x B 370 x 250 mm.
Size of Work Table-L x B 150 x 150 mm.
Diameter of Column 47 mm.
V-Belt (Inside) -
V-Belt for Motor (Outside) A-36
No. of Spindle Speeds 3
Forwards Speeds Range 480/750/1400
Reverse Speeds Range 480/750/1401
Motor Single phase or three phase 0.25 H.P.
  1440 R.P.M.
Overall Height 650 mm.
Overall Width 270 mm.
Overall front to back 540 mm.
Weight approx 50 Kg.
