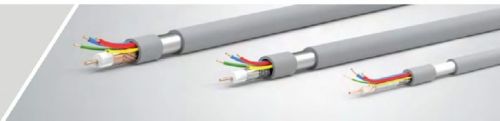

Lumiflex CCTV Camera Cable, Feature : Durable, Quality Assured

Lumiflex CCTV Camera Cable, Feature : Durable, Quality Assured

Listing ID #6203156

Get Latest Price

MOQ 100 Meter
InsulationThe Insulation Provided Over the Conductor is of Ldpe/hdpe with High Dielectric Strength and Low Cap
Brand NameLumiflex
FeatureDurable, Quality Assured
Country of OriginIndia
Supply Type Supplier
Preferred Buyer Location India only

View More Details

Send Enquiry

Product Details

Insulation The Insulation Provided Over the Conductor is of Ldpe/hdpe with High Dielectric Strength and Low Cap
Brand Name Lumiflex
Feature Durable, Quality Assured
Country of Origin India
Conductor The Central Conductor is Made of fine Wires Tin Coated Electrolytic Grade Copper
Screen Annealed Tin Coated Copper 70% Coverage Approx. & Aluminium Alloy 70% Coverage
Sheath Black Colored Pvc

High resolution camera cable

Application:

Lumiflex CCTV Cables are offered in types namely 4 + 1 CCTV Cable ,3 + 1 CCTV Cable, RG-59+ 2 core cctv cable and RG-6 +2 core. Co-axial cables form the carrier for video signal and the other 4 cores or 3 cores or 2 cores form the carriers for power

Properties:

CCTV cables are designed to optimize the quality of video signals. The dense tin coated copper screen ensures complete elimination of noise from video signals. FR Sheathing is ideal for all Indoor and outdoor applications.

Cable Construction

Screened Core for Video signal:

Conductor:- The central conductor is made of fine wires tin coated electrolytic grade copper
Insulation:-The insulation provided over the conductor is of LDPE/HDPE with high dielectric strength and low capacitance
Screen:-Annealed tin coated copper 70% coverage approx. & aluminium alloy 70% coverage
Sheath:-Black colored PVC

Power Cores:

Conductor:- The central conductor is made of fine wires tin coated electrolytic grade copper
Insulation:-The insulation provided over the conductor is of PVC with high dielectric strength
Seperator:-PETP tape
Sheath:-PVC
Cable Colour:-White. Black, grey and blue

Specification

Construction	Lumiflex	Lumiflex
1	Power Cable	CCTV 4+1	CCTV 3+1
	Cable Size	4Core x 0.15 sq.mm	3 Core x 0.15 sq.mm
	Conductor	Copper	Copper
	No of Strands	14 nos	14 nos
	Strand Dia (Nominal)	0.12mm	0.12mm
	Insulation	PVC	PVC
	Thickness (Nominal)	0.30 mm	0.30 mm
	Colour	RD,YL,GN,BK	RD,YL.BK
2	Co-axial Cable
	Conductor	Solid BC	Solid BC
	Conductor Dia (Nominal)	0.56mm	0.56mm
	Insulation	PE	PE
	Thickness	1.15 mm	1.15 mm
	Braiding	AL Alloy/Tin Copper	AL Alloy/Tin Copper
	Wire Dia (Nominal)	0.12 mm	0.12 mm
	Braiding Coverage	0.7	0.7
3	Outer Diameter	6.9mm	6.9mm
