Contact SupplierCombining our expertise with the technology that we possess, we take the responsibility to deliver utmost quality Cassette Air Conditioner to the customers. Our organization has all the essential logistic resources and links to ensure on schedule delivery of order(s).

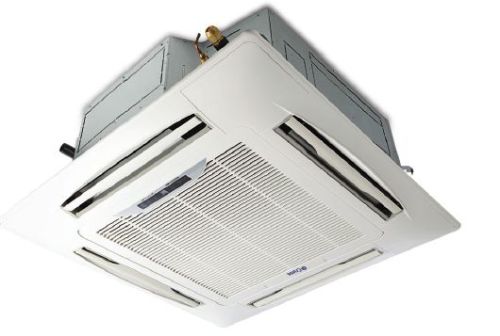

Ceiling Mounted Cassette Type 1 CRCST :
Integrated Ceiling Air Conditioners - for the Perfectly Quiet Environment. The integrated ceiling cassette air conditioners deliver powerful cooling, whisper quiet operation and easy installation in new or old buildings. Mounted within the ceiling, the cassette AC takes no additional space and beautifully complements your existing decor.
Features :
Model Name | - | CRCST 18G | CRCST 24 | CRCST 36 | CRCST 48 | CRCST 60 |
---|---|---|---|---|---|---|
Function | - | Cooling | Cooling | Cooling | Cooling | Cooling |
Cooling Capacity | W | 5300 | 7325 | 10550 | 14050 | 17585 |
- | Kcal/h | 4500 | 6300 | 9070 | 12080 | 15120 |
Power Consumption | W | 1895 | 2950 | 3890 | 5100 | 6560 |
Power Supply | V/ Hz/ Ph | 230/ 50/ 1 | 220-240/50/1 | 380-420/50/3 | 380-420/50/3 | 380-420/50/3 |
Rated Current | A | 9.5 | 12.8 | 5.9 | 8 | 10 |
EER | W/W | 2.79 | 2.48 | 2.71 | 2.76 | 2.68 |
Indoor Unit | ||||||
Sound Levels (H) | dB (A) | 46 | 48 | 50 | 52 | 50 |
Airflow Volume (H) | m3/h | 800 | 1220 | 1640 | 1660 | 1800 |
Dimensions- Unit | mm | 600x230x600 | 840x230x840 | 840x300x840 | 840x300x840 | 840x300x840 |
WxHxD) Panel | mm | 650x50x650 | 950x55x950 | 950x55x950 | 950x55x950 | 950x320x900 |
Pkg. Dimensions-Unit | mm | 681x325x681 | 900x250x900 | 900x320x900 | 900x320x900 | 900x320x900 |
WxHxD) Panel | mm | 673 x 117 x 673 | 1035 x 90 x 1035 | 1035 x 90 x 1035 | 1035 x 90 x 1035 | 1035 x 90 x 1035 |
Net Weight/ Gross Weight Unit | kg | 20/27 | 24/28 | 32/36 | 32/36 | 32/38 |
panel | kg | 2/2.5 | 5/8 | 5/8 | 5/8 | 6/9 |
Outdoor Unit | ||||||
Condenser Type | - | Copper | Copper | Copper | Copper | Copper |
Compressor Type | - | Rotary | Rotary | Scroll | Scroll | Scroll |
Refrigerant Type | R 22 | R 22 | R 22 | R 22 | R 22 | |
Air Flow Volume | m3/h | 2000 | 3000 | 5000 | 5300 | 6050 |
Dimensions (W x H x D) | mm | 810 x 540 x 340 | 810 x 660 x 340 | 1040 x 695 x 440 | 1040 x 695 x 440 | 900 x 1167 x 330 |
Pkg. Dimensions (WxHxD) | Mm | 878 x 580 x 360 | 830 x 690 x 360 | 1100 x 750 x 490 | 1100 x 750 x 490 | 1132 x 1307 x 443 |
Net Weight/ Gross Weight Unit | kg | 43/47 | 50/55 | 78/96 | 85/103 | 85 /103 |
Piping Connection | mm (Liq) | 6.35 | 9.52 | 9.52 | 9.52 | 12.7 |
Mm (Gas) | 12.7 | 16 | 19 | 19 | 19 | |
Approx. Cooling Area | sq ft | 180 | 240 | 360 | 480 | 600 |
