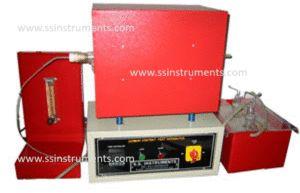

Carbon Content Test Apparatus

Get Latest Price

Muffle Furnace: 4 x 4 x 9 (LHD in Inches) for Temperature upto 900oC.
Temperature Control: Digital PID Temperature Controller. +/- 5oC
Model: SSI 528 CCBS (Carbon Content Test Apparatus as per BS Standard)
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

S.S. Instruments Pvt. Ltd.

Laxmi Nagar, Delhi

View Number

Member Since 16 Years
Nature of Business Retailer
Year of Establishment 1985

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Combustion Tube: Quartz Tube along with Quartz Boat for sample Burning.
Glass Ware: 2 Nos. Cold Traps
Temperature Control: Digital PID Temperature Controller. +/- 5oC
Model: SSI 528 CCBS (Carbon Content Test Apparatus as per BS Standard)
Nitrogen Flow: Flow Meter (for N2 flow of 1.7 LPM) is Provided.
Delivery : 4 to 6 weeksPacking : 3 wooden Boxes
Muffle Furnace: 4 x 4 x 9 (LHD in Inches) for Temperature upto 900oC.
Furnace Temperature: 600oC, LC 0.1oC

Model Number: SSI 528 CCBS

Standard Number: BS:2782 Pt.4 Method 452B 1978.IS: 10810 (Pt.32).

The test determines the content of Carbon Black in Polysthylene Insulation or sheath of electrical cables.

Instrument Principle

Carbon Black is normally used to enhance the weather resistance properties of polyethylene compound. This test is to determine the quantity of carbon black in the compound. The material is burned under controlled condition of temperature and Nitrogen Flow and is weighed to the nearest 0.0001 gms.

Standard

The instrument is manufactured as per the specification and confirm to test app., method BS 2782 Pt 4

Instrument

The instrument comprising of

Tubular Furnace for temp. upto 600oC.

  Digital PID Temperature Indicating Controller, LC : 0.1oC
  Quartz tube and Quartz boat for keeping samples – one each    Roto meter for nitrogen Flow
  Cold Traps – 2 nos,
