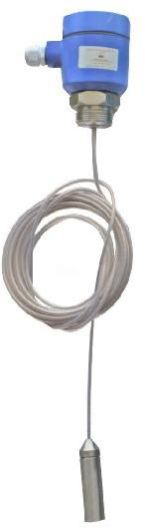

Capacitance Type Level Indicator

₹ 11,000 - ₹ 25,000 / Piece

Power Supply24 V DC (2 Wire)
Accuracy1% FSD
Process ConnectionThreaded, flanged or, Triclover connection
Max.sensing Length of the TransmitterUp to 3 Meters with Rod and Up to 10 Meters with Rope
Supply TypeSupplier, Retailer
Preferred Buyer Location All over the world

Company Information

View Company Details

Ask for more detail from the seller

Report incorrect details

Power Supply24 V DC (2 Wire)
Accuracy1% FSD
Process ConnectionThreaded, flanged or, Triclover connection
MediumConducting Liquids like Water and Water Based Solutions Or, Non Conducting Mediums
NoteIf temperature is continuously varying, capacitance level indicators are not recommended.
Working PrincipleCapacitance

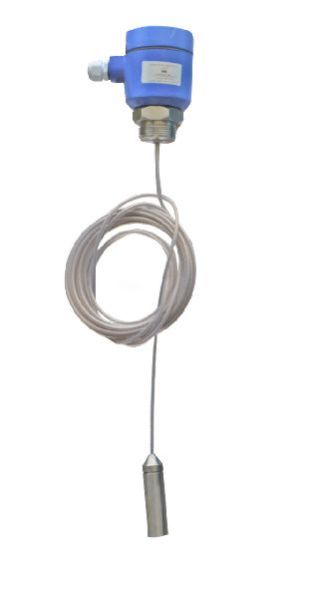

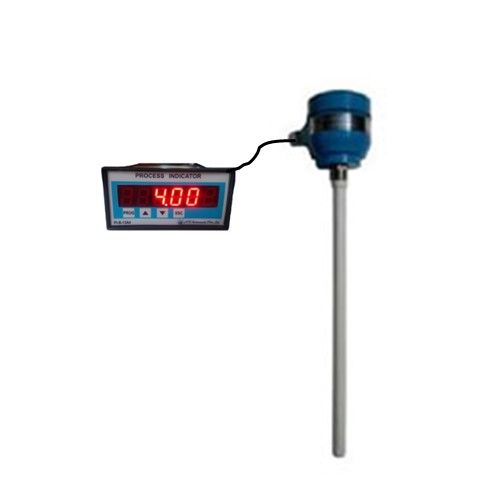

Max.sensing Length of the TransmitterUp to 3 Meters with Rod and Up to 10 Meters with Rope
MountingFrom Top of the Tank
Max. Fluid Pressure10 Kg/cm2
Electrical Terminal HousingWeather Proof Aluminium Or, Flameproof
Output of the Transmitter4 to 20 mA
Max. Fluid Temp.Up to 150 Degree C
Sensor MOCPFTE coated SS 316 (Rod type probe or, Rope type probe)

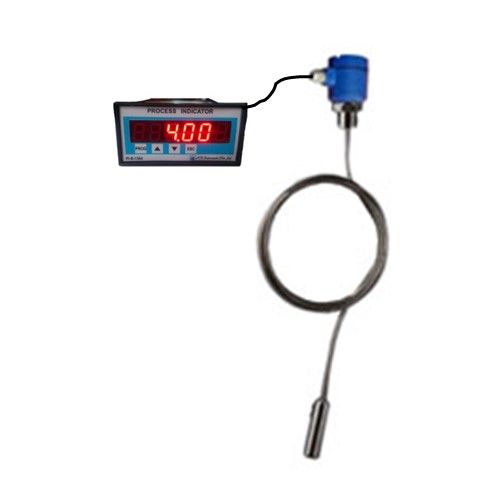

Level IndicationDigital through a Integrated or, Panel mounted Indicator (needs external power supply)

Capacitance type Digital Level Indicators are used for all types of liquids (without Moisture, Fumes and Foam)

Details :

This instrument works on principle of change in Capacitance between two metallic surfaces.
The Sensing Probe would be SS rod coated with PTFE and the Metallic Tank would be considered as Reference.
