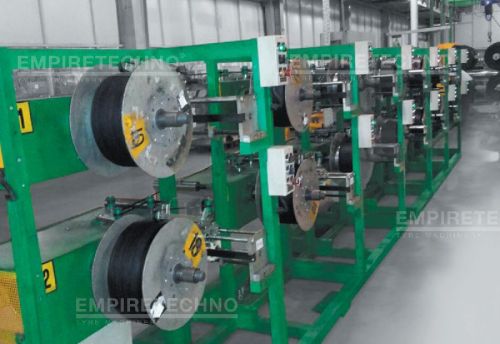

It features slitting cap material which is coated with rubber into 6 or 8 or 12 (depends on customer’s requests) smaller strip belts in a fixed width. Cap Strip Slitter can be used to slit Cap Ply in to equal no of strips which further spiral wind on 8-16 wind up stations . Each Wind up station having provision for PVC shell and each PVC shell having its own traverse unit. This machine is to support high performance tire faclilities for production levels from 5000 tires/day to 12000 tires/day
| S.NO. | ITEM DESCRIPTION | DIMENSION/TYPE |
| 1 | PURPOSE | To Automatically Slit Rubberized/Nylon fabric from a let-off station at adjustable cutting and wound with uniform tension |
| 2 | PARENT ROLL WIDTH | 60-300mm |
| 3 | PARENT ROLL DIAMETER | 600mm |
| 4 | PARENT ROLL WEIGHT | 150kg |
| 5 | NO OF STRIP | 8-16 NO’s |
| 6 | SLIT WIDTH ACCURACY | +/-0.5 |
| 7 | NO OF LET-OFF | Dual Unwinding station |
| 8 | LINE SPEED | 50M/MIN |
| 9 | SLIT WIDTH | 10 MM- 30MM |
| 10 | NO OF WIND UP STATIONS | 8-16 |
| 11 | SLITTING METHOD | Fixed Blade type |
| 12 | SHELL/SPOOL LENGTH | 400 mm |
| 13 | MAXIMUM WINDING DIAMETER | 400 mm |
| 14 | LENGTH OF STRIP ON EACH SPOOL | 4000 M |
