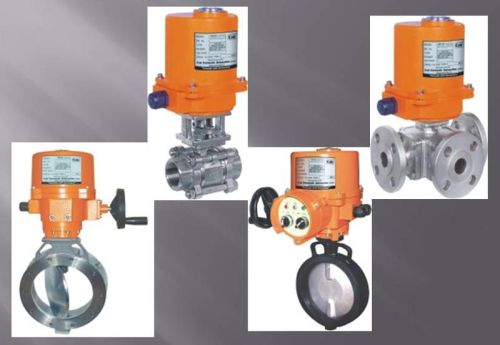

Contact SupplierWe are offering fail safe electric actuators. Fail safe electric actuators with battery back-up systems
cair modulating / on-ff type 24v ac single phase electrical actuators with battery back up.
electrical actuator details:
manufacturer : cair euromatic automation pvt.ltd
brand / model : cair / mod
characteristic : on-off / modulating type
travel : 90 degree
indicator : continuous position indicator
phase : single phase
supply :24v ac (±10%), 50 hz
body material : aluminum alloy
ambient temperature : 20 degree c ~ 80 degree c
motor insulation : class f
protection class : ip 67 – weather proof
limit switch : 1no + 1nc output of 24v ac
position on powerfail : fail safe close
manual override : provided
battery backup system:
battery returns series is a new generation series in range of “cair” electric actuators.
it includes regular functions, along with the returning function during power failure.
you can achieve normally open / normally close condition of your valve.
high performance re-chargeable lithium battery gives long working life and smooth performance in your process.
housing enclose protection class ip 67
battery parameters: 24vdc, 1500m ah. Charging time is 5 hours.
power failure modes: fully open, fully close, stay put
battery mode duration cycle : 5 ( open / shut / open which you have set).
