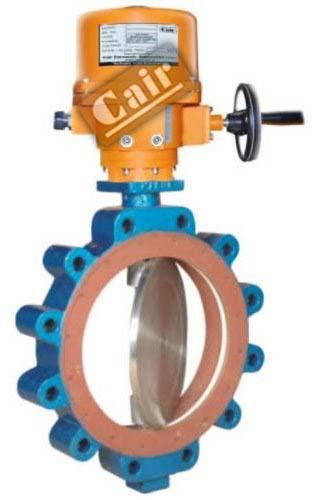

CAIR Electrical Butterfly Valve Actuator

We are offering Electrical Butterfly Valve Actuator-mod bfv & Motorized Butterfly Valve.

Item Code: MOD-BFV-ECO
"Cair" offers rubber lined Butterfly Valves for HVAC & utilities. These Valves are truly 'Fit & Forget Valve', which requires minimum maintenance.
The body lines which also functions as the soft seat,
comes in an integrally moulded version & offers bi-directional sealing against vacuum upto the pressure of PN 10PN 16.

Electrical Actuator Details:

Manufacturer: Cair Euromatic Automation
Brand Model: Cair MOD
Characteristic: On -Off Type
Travel: 90 Degree
Indicator: Continuous Position Indicator
Phase: Single Phase
Power Supply: 220V AC (±10%), 50 Hz
Body Material: Aluminum Alloy
Ambient Temperature: 20° C ~ 80°C
Motor Insulation: Class F
Protection Class: IP 67 Weather Proof
Manual Adjustment: Wrench Setting
Limit Switch: 1NO + 1NC output of 220V AC
Position On Power Failure: Stay Put
Manual Override: Provided

Accessories:

Modulating Controller: 4 ~ 20 mA
Potentiometer Feedback
Integral Starter unit
Control Panel

Size Range: 25 mm to 1800 mm

Butterfly Valve Details:

Body: Cast Iron S G Iron WCB SS 304 SS 316
Disc: Cast Iron S G Iron WCB SS 304 SS 316
Seat: Nitrile EPDM PTFE Viton
Shaft: AISI 410
Valve Type: Centric Disc Butterfly Valve
Body Type: Short Wafer (Sandwiched between flanges)
Seat Type: Integrally moulded with the body
End Connection: Wafer Sandwiched (Lug on request)
Pressure Rating: PN 10
Seat Leakage: Tight Shut Off
Operation: Motor Operated
actuators butterfly valve, butterfly valve actuators, actuated butterfly valves,electrical acuator operated butterfly valve, motorized butterfly valve

Key Features:

Integrally moulded seat liner on the body, which ensures excellent dimensional stability & guaranteed seat tightness.
Seat liner extending on to the contact faces ensures perfect sealing and eliminates the need for separate flange gaskets.
Narrow land disc ensures perfect sealing with least operating torque requirements.
A fully universal body design ensures fitting of the valve between companion flanges of all popular standards (viz : ANSI, BS, DIN, JIS, IS etc.)
The notch disc & band lever ensures locking of the valve in 8 intermediate position in addition to close and open position. Hand lever can be locked through pad lock.
Body castings made of superior FG 260 grade cast iron to ensure additional strength.
Valve disc made of stainless steel ductile cast iron which enable protection against possible water hammer or pressure surges.
A truly line size body bone to ensure maximum flow capacity with the lowest pressure drop.
