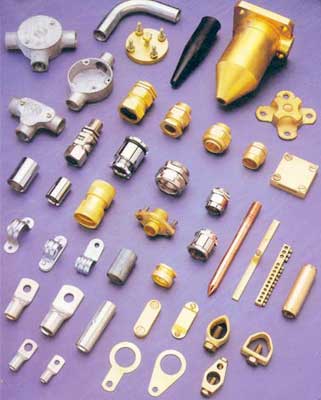

Cable Gland (01)

Listing ID #916247

we are one of the prime suppliers of cable glands in india. We have a variety of cable glands available with us which comprises of waterproof cable glands, flameproof cable glands, etc. These glands are further categorized in two categories single compression cable glands and double compression cable glands. These cable glands are widely used in various industrial sectors. Today, our company is regarded as one of the prominent water-proof cable gland manufacturers and brass cable glands suppliers in india. application : these glands are weather proof and water tight and have the provision of earthing. It’s an armored cable with a small washer. It can be used under almost all climatic conditions and may be used with protected pvc shrouds corrosive conditions. specifications : these cable glands consist check nut [n] gland body [gb] three metals washer [w 1,2,3] , rubber ring [r] & compression nut [cn] metal washer [w 1,2,3] rubber ring [r] & compression nut [cn} fitting sequences

• screw item gb into equipment [secure with item n if plain hole entry
• pass item cn item w# and item r over cable before commencing to strip over sheath.
• remove the outer sheath to the desired length
• pass item w2 over the cable and splay out the armour wire one by one and then cut the armour wire according to the size of washher insert the w! over inner sheath of cable so that bend armour are secured between the two metal washer.
• push the cable through gb and engage the item cn with item gb and tighten up while doing so the grooved rubber ring with contact in verticle direction and will grip the sheath a cable.
• double compression these glands are double seal cone grip type. These are weatherproof, waterproof and flame proof for use at hazardous locations such as chemical plants, petro chemiclas plants, fertilizers and in most of the mines in almost all climatic conditions. These glands are approved by central mining research center dhanbad under certificate no. V11474 as per is 2148-1981 and iic hydrogen gas test certificate.
