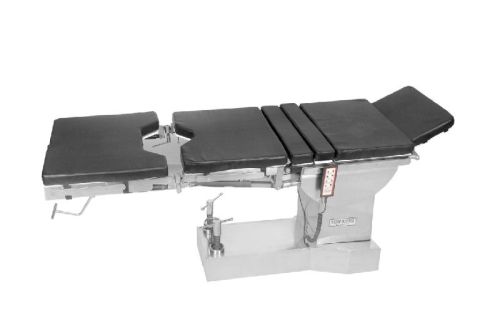

Major C-ARM compatible OT table with smooth electro mechanical drive. Six Section X-Ray translucent Top with inbuilt kidney bridge. The top is eccentrically positioned for C-ARM imaging. Operating positions include Height Adjustment, Lateral Tilt, Trendelenburg & Reverse Trendelenburg, Back Section Raising etc can be easily achieved by Hand Held remote switch.  Head and Leg sections are manually interchangeable for the Chair Position.  Base & Column covers are made of Medical Grade Stainless Steel which is non-reflecting and is anti-bacterial.  3~4 Hours battery backup to avoid electrical connections during OT. Maximum load capacity 200 KG.
Standard Accessories :
1. Anesthetic Screen Frame (L Shaped)  - 1 Pc
2. Shoulder Support with pad. - 1Pair
3.​ Arm Boards with pad.- 1 Pair
4. Lateral Support with pad.- 1 Pair
5. Knee crutches Geopel type-1 Pair
6. Water proof foam, rexene mattress-1 set

Optional Accessories:
1. Ortho attachment
2. Neuro Attachment

Size:

• Top Dimension - 1890 mm L x 520 mm W
• Height Adjustment -750mm ~ 1050mm
• Lateral Tilt - 20° / 20°
• Trendelenburg / Reverse - 30° / 25°
• Back rest Up / Down - 80° / 25°
• Leg Rest Up / Down - 15° / 90°
