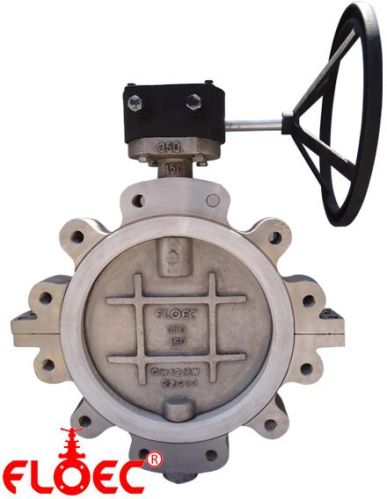

Butterfly Valve

Listing ID #3906002

Get Latest Price

ASME / BS 125# / 150# / 300# / PN10 / PN16 / PN25Type
Ref Material of Construction & Pressure-Temperature TableDesign Code
Equivalent or better than seat materialMOC
FullSeat
Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Product Details

Solid-Dual Shaft / Single Shaft Gasket & Packing
Center Disc, Single / Double / Triple Offset Disc. Fully Lined Body / Unlined Body End Connection
API 598 / BS 6755 Part - I Inspection
Wafer / Lugged / Flanged Operation
API - 609 / BS – 5155 / AWWA C504 Testing
40 NB through 1200 NB Pressure Rating
Metal to Metal / Natural / Neoprene / Nitrile / EPDM / Silicon / Vitone Rubber or PTFE Disc
Equivalent or better than seat material MOC
Full Seat
Wrench / Manual Gear / Pneumatic and Motorized Port Opening
Ref Material of Construction & Pressure-Temperature Table Design Code
ASME / BS 125# / 150# / 300# / PN10 / PN16 / PN25 Type
Butterfly Valve - Technical Specification Size Range

Butterfly Valves, wafer type are designed with integrally moulded elastomer body sleeve especially for longer durability and easy performance. Integrally moulded sleeve ensures minimum resistance between the disc and the sleeve.

UNIQUE FEATURES

Integrally moulded elastomer liner prevents the dislocation of seat which enhances durability.
An ideal sealing between body, disc and stem is created by Flat surface on the disc and the liner at the top and bottom.
Elastomer body liner extends deep from the top to the bottom of disc shaft passages with integral 'O' ring to make sure that the working media does not contact the body material, thus the durability of the body is improved.
A primary seal provided at the top end of the body checks any foreign particles from entering the Valve, thus the life of the Stem is increased and its operation becomes smooth.
The Valve disc design makes it sure that there is a smooth straight flow, which minimizes pressure drop across the Valve.
Close tolerance maintained between the liner, the disc and the stem minimizes operation torque and causes smooth and easy operation.
Integrally moulded liner holds integral gasket with it at both ends of the Valve hence no Valve mounting gaskets are needed.
Designed and manufactured as per BS 5155/API 609/AWWA C504
Appropriate to mount between flanges of ASME B16.5 [150#] or BS-10 Table D/E
Pneumatic and Electrical actuated Valves can be customized.
Top platform of the Valve is perfect to mount actuator or manual gearbox directly.
Flow Control Lever allows excellent control of the flow.
