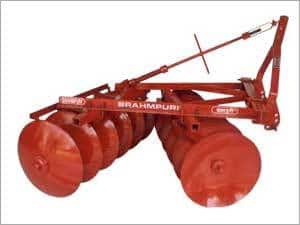

Contact SupplierFurther Details : We have been manufacturing continuously with high grade Offset Disc Harrow. These Offset Disc Harrow are are dimensionally accurate and are therefore of highly applicable in agricultural industry.
Features :
Mounted Offset Disc Harrow | |||||||
Model | Rmwlodh-12 | Rmwlodh-14 | Rmwlodh-16 | Rmwlodh-18 | Rmwlodh-20 | Rmwlodh-22 | Rmwlodh-24 |
Frame | 100 X 50 (FRONT Channel) & 75 X 10 (ANGLE Frame) | ||||||
Gang Bolt | 32 Mm (M.S Sq) | ||||||
No Of Disc | 12 | 14 | 16 | 18 | 20 | 22 | 24 |
Type Of Disc | Plain / Notched Disc (As Required) | ||||||
Disc Diameter | 508 X 3t (20") Or 560 X 4t (22") | ||||||
Width Of Cut | 1420 | 1635 | 1852 | 2068 | 2285 | 2502 | 2718 |
Distance Between Disc | 228 (mm) | ||||||
Bearing Hub | 6 | 8 | |||||
Weight | 390 | 430 | 500 | 575 | 615 | 675 | 730 |
Tractor H.P. | 30-40 | 40-50 | 50-60 | 60-70 | 70-80 | 80-90 | 90-100 |
