Contact SupplierWe are offering water flow sensor.

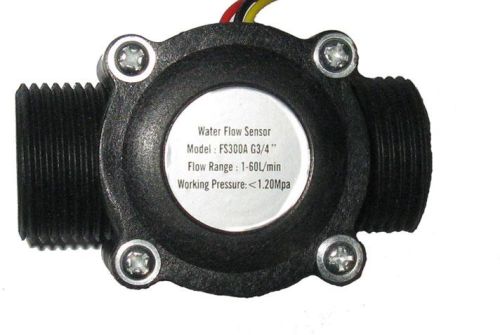

Mini turbine flow sensor
common specification :
working voltage : 4.5 to 24 vdc
max. Pressure : 17.5 bar
working pressure : 0 to 10 bar
max rated current : 8 ma
withstand current : 15 ma
working temp : up to 120 deg c
storage temp : 25 to 65 degc
accuracy : 0.5% fsd
humidity: 35% to 90%
material: pa66 +30gf
high electric level : less than 4.5 vdc( input voltage 5 vdc)
low electric level : higher than 0.5 vdc( input voltage 5 vdc)
pulse output protection: 50+/-10 %
model: fs100
flow range: 0.15 to 2.5 litter/minuit
accuracy : 0.5% fsd
pulse number : 3900 pulses/litter
model: fs200a
flow range: 0.5 to 25 litter/minuit
accuracy : 1 % fsd
pulse number : 450 pulses/litter
model: fs300
flow range: 1 to 60 litter/minuit
accuracy : 3 % fsd
pulse number : 270 pulses/litter
model: fs400
flow range: 1 to 60 litter/minuit
accuracy : 1 % fsd
pulse number : 390 pulses/litter.
